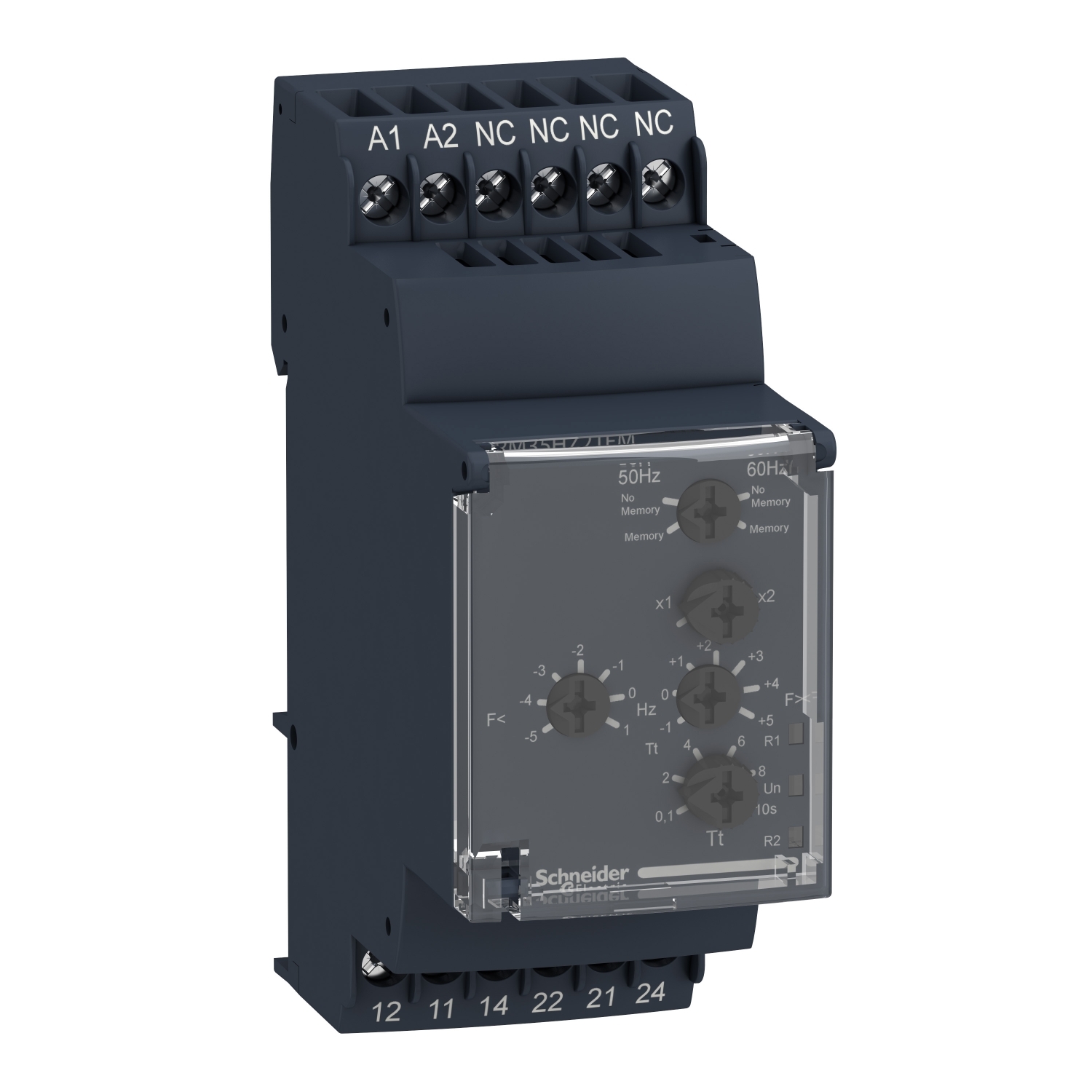

Tip
RM35
Širina (mm)
35
Nazivni tok (A)
5
Št. kontaktov
1 C/O + 1 C/O
Območje časovnega zamika
0.1 s - 10 s
Izhod
relejski
Funkcija
nadfrekvenca / podfrekvenca
Kontrola
kontrola frekvence
Tip merilne napetosti
AC
Max. preklopna napetost
250 V
Tip preklopne napetosti
AC/DC
Number of contacts as normally open contact
0
Number of contacts as change-over contact
2
Number of contacts as normally closed contact
0
Type of electric connection
Screw connection
Rated control supply voltage Us at AC 50HZ (V)
120…277 V
Rated control supply voltage Us at AC 60HZ (V)
120…277 V
Voltage type for actuating
AC
Voltage type of supply voltage
AC
Height (mm)
90
Width (mm)
35
Depth (mm)
72
Rated voltage (V)
120…277 V
With detachable clamps
No
Max. permitted off-delay time (s)
10
Min. adjustable off-delay time (s)
0.1
Max. permitted delay-on energization time (s)
10
Min. adjustable delay-on energization time (s)
0.1
Response value for frequency (Hz)
40…70 Hertz
