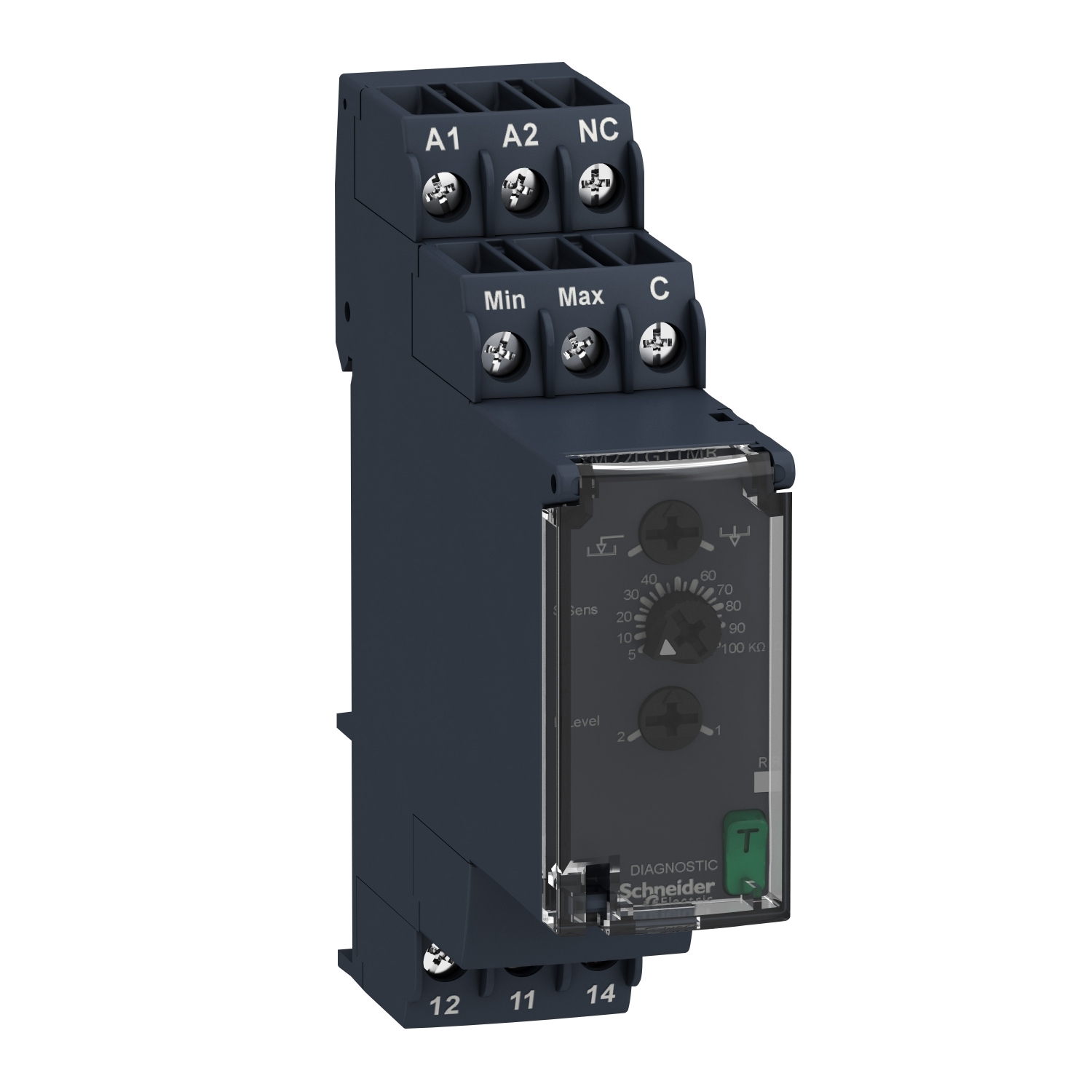

Tip
RM22
Širina (mm)
22.5
Nazivni tok (A)
5
Št. kontaktov
1 C/O
Izhod
relejski
Funkcija
kontrola z upornimi sondami
Kontrola
kontrola nivoja
Tip merilne napetosti
AC/DC
Max. preklopna napetost
250 V
Tip preklopne napetosti
AC
Number of contacts as normally open contact
0
Number of contacts as change-over contact
1
Number of contacts as normally closed contact
1
Type of electric connection
Screw connection
Rated control supply voltage Us at AC 50HZ (V)
24…240 V
Rated control supply voltage Us at AC 60HZ (V)
24…240 V
Voltage type for actuating
AC/DC
Rated control supply voltage Us at DC (V)
24…240 V
Height (mm)
90
Width (mm)
22.5
Depth (mm)
73
With detachable clamps
No
Response value sensitivity adjustable
Yes
Cascadable
No
Physical measurement principle
Other
Number of inputs for electrodes
3
