Tip

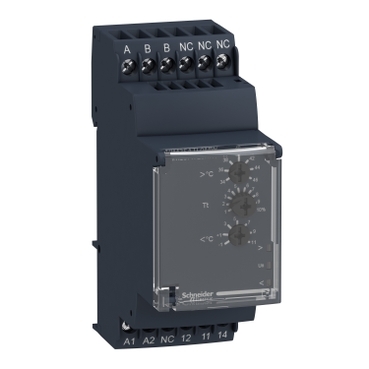

RM35
Širina (mm)
35
Nazivni tok (A)
5
Št. kontaktov
1 C/O
Izhod
relejski
Funkcija
kontrola temperature-aplikacija dvigala
Kontrola
kontrola temperature
Tip merilne napetosti
AC/DC
Max. preklopna napetost
250 V
Tip preklopne napetosti
AC
Number of contacts as normally open contact
0
Number of contacts as change-over contact
1
Number of contacts as normally closed contact
0
Type of electric connection
Screw connection
Rated control supply voltage Us at AC 50HZ (V)
24…240 V
Rated control supply voltage Us at AC 60HZ (V)
24…240 V
Voltage type for actuating
AC/DC
Rated control supply voltage Us at DC (V)
24…240 V
Voltage type of supply voltage
AC/DC
External reset possible
No
Height (mm)
90
Width (mm)
35
Depth (mm)
72
With detachable clamps
No
Error registration possible
No
Number of measuring circuits
1
Temperature measuring range (°C)
-1…46 Degrees celsius
