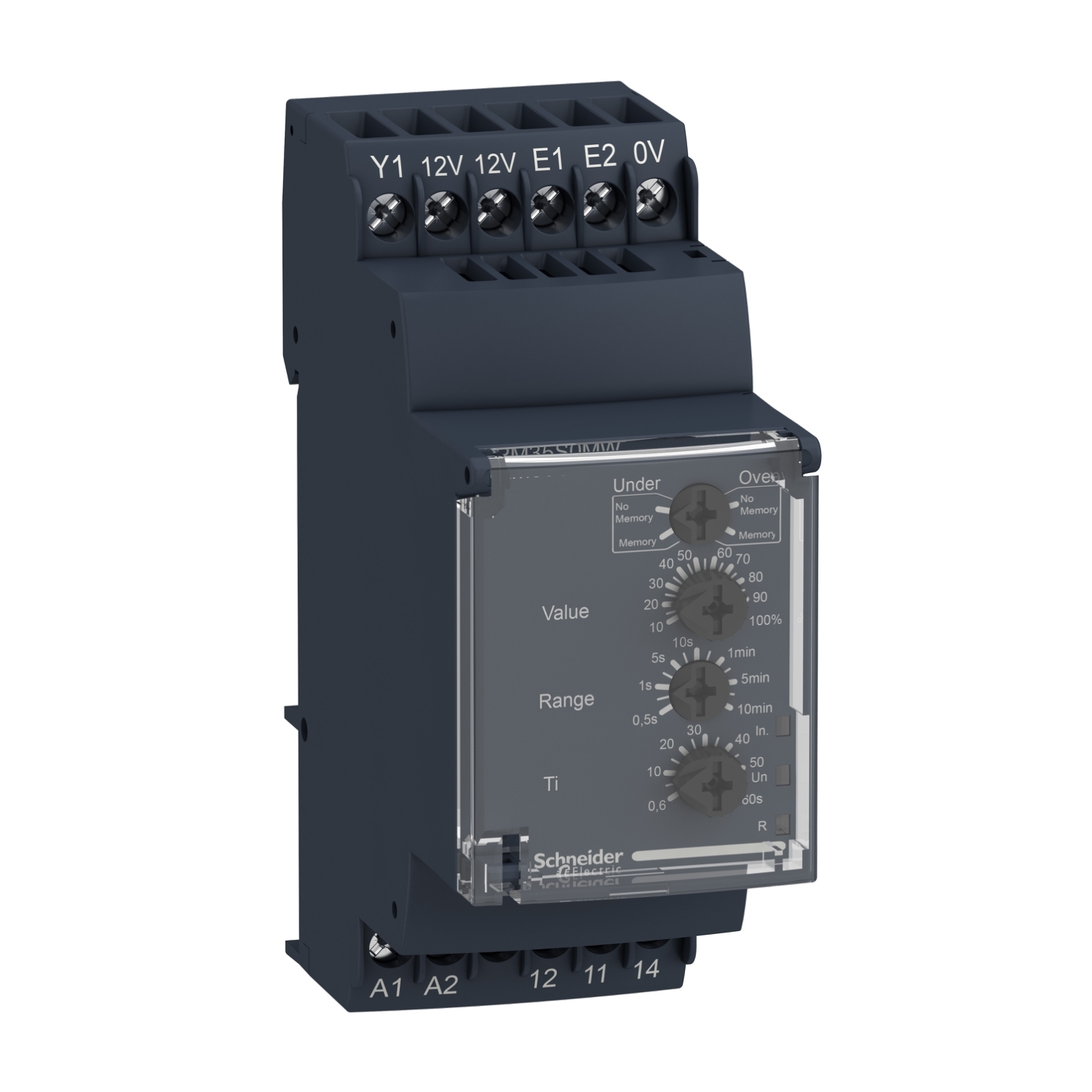

Tip
RM35
Širina (mm)
35
Nazivni tok (A)
5
Št. kontaktov
1 C/O
Izhod
relejski
Funkcija
prevelika hitrost / premajhna hitrost
Kontrola
kontrola hitrosti
Merilno območje napetosti (V)
208 - 480 V
Tip merilne napetosti
AC/DC
Max. preklopna napetost
250 V
Tip preklopne napetosti
AC/DC
Type of electric connection
Screw connection
Rated control supply voltage Us at AC 50HZ (V)
24…240 Volt
Rated control supply voltage Us at AC 60HZ (V)
24…240 Volt
Voltage type for actuating
AC/DC
Rated control supply voltage Us at DC (V)
24…240 Volt
Height (mm)
90
Width (mm)
35
Depth (mm)
72
SIL according to IEC 61508
None
Performance level acc. EN ISO 13849-1
Level a
Suitable for safety functions
No
With detachable clamps
No
Category according to EN 954-1
1
Number of outputs, safety related, delayed, with contact
0
Number of outputs, safety related, undelayed, semiconductors
0
With feedback circuit
Yes
Number of outputs, safety related, undelayed, with contact
0
With approval according to UL
Yes
Number of outputs, signalling function, delayed, with contact
1
Number of outputs, safety related, delayed, semiconductors
0
Number of outputs, signalling function, undelayed, with contact
0
Evaluation inputs
2-channel
With approval for TÜV
No
With approval for BG BIA
No
Number of outputs, signalling function, undelayed, semiconductors
0
Number of outputs, signalling function, delayed, semiconductors
0
Function rotational speed monitoring
Yes
Rated operating frequency (Hz)
45…66 Hertz
Function standstill monitoring
Yes
With approval for TÜV
No
