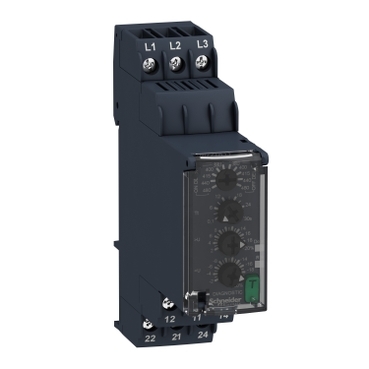

Tip
RM22
Širina (mm)
22.5
Nazivni tok (A)
8
Št. kontaktov
2 C/O
Območje časovnega zamika
0.1 s - 30 s
Izhod
relejski
Funkcija
nadzor faz / prenapetost / podnapetost
Kontrola
tri fazna kontrola
Merilno območje napetosti (V)
200 - 240 V
Tip merilne napetosti
AC
Max. preklopna napetost
250 V
Tip preklopne napetosti
AC
Number of contacts as normally open contact
0
Number of contacts as change-over contact
2
Number of contacts as normally closed contact
0
Type of electric connection
Screw connection
Rated control supply voltage Us at AC 50HZ (V)
380…480 V
Rated control supply voltage Us at AC 60HZ (V)
380…480 V
Voltage type for actuating
AC
Height (mm)
90
Width (mm)
22.5
Depth (mm)
73
With detachable clamps
No
Voltage measurement range (V)
304…576 Volt
Phase sequence monitoring
Yes
Function over voltage detection
Yes
Phase imbalance monitoring
No
Phase failure detection
Yes
Function under voltage detection
Yes
Max. permitted off-delay time (s)
30
Min. adjustable off-delay time (s)
0.1
Max. permitted delay-on energization time (s)
30
Min. adjustable delay-on energization time (s)
0.1
