Tip

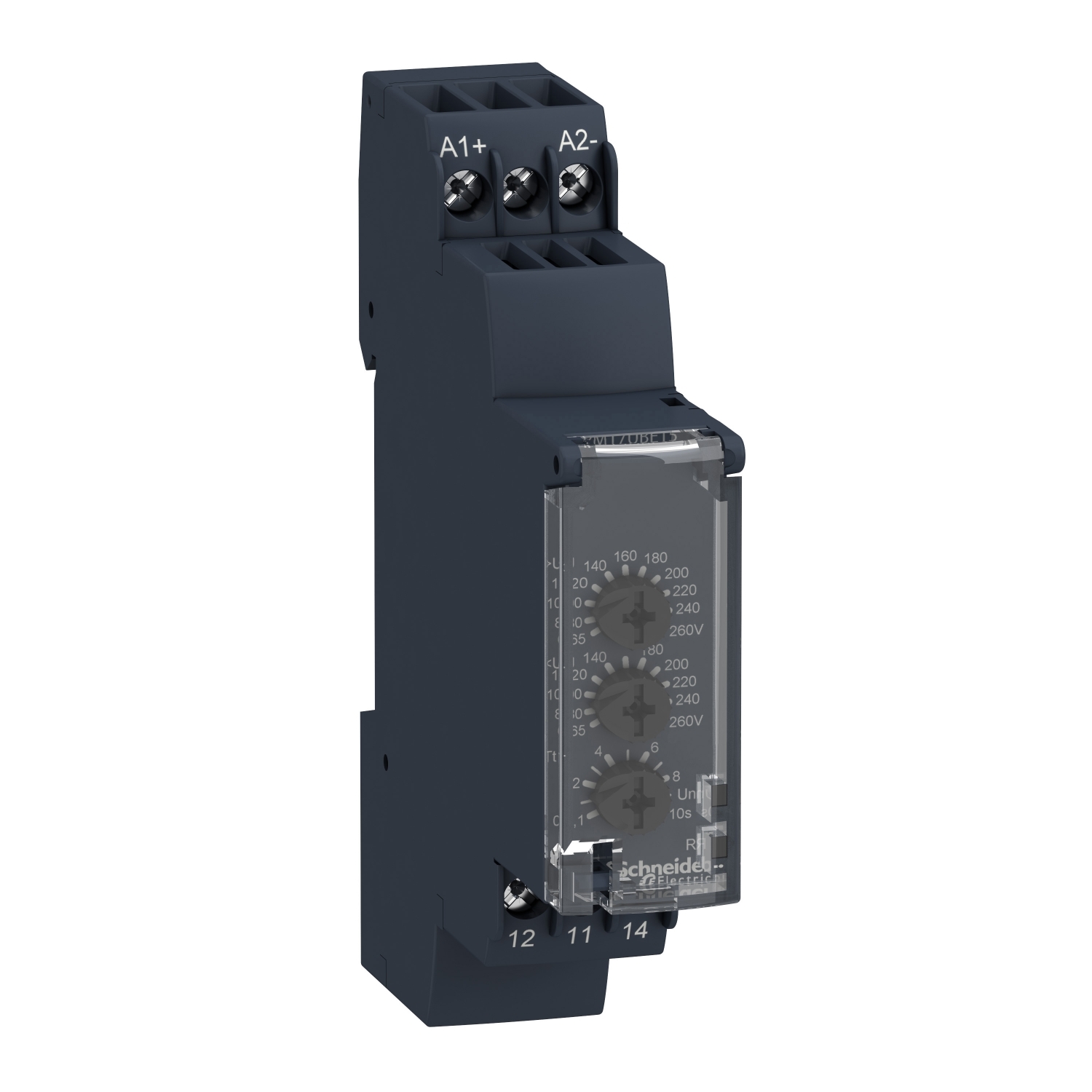

RM17
Širina (mm)
17.5
Nazivni tok (A)
5
Št. kontaktov
1 C/O
Območje časovnega zamika
0.1 s - 10 s
Izhod
relejski
Funkcija
prenapetost / podnapetost
Kontrola
eno fazna kontrola napetosti
Merilno območje napetosti (V)
208 - 480 V
Tip merilne napetosti
AC/DC
Max. preklopna napetost
250 V
Tip preklopne napetosti
AC/DC
Number of contacts as normally open contact
0
Number of contacts as change-over contact
1
Number of contacts as normally closed contact
0
Type of electric connection
Screw connection
Height (mm)
90
Width (mm)
175
Depth (mm)
72
With detachable clamps
No
Single-phase hysteresis possible
No
Three-phase hysteresis possible
No
Max. permitted off-delay time (s)
10
Min. adjustable off-delay time (s)
0.1
Single-phase over voltage possible
Yes
Three-phase over voltage possible
No
Single-phase under voltage possible
Yes
Three-phase under voltage possible
No
Contains function DC-under voltage
Yes
Contains function DC-over voltage
No
Max. permitted delay-on energization time (s)
0.5
Contains function DC-voltage hysteresis
No
Type of voltage measurement range
AC/DC
Voltage measurement range 1 (V)
65…260 Volt
Response value voltage (V)
50…270 Volt
