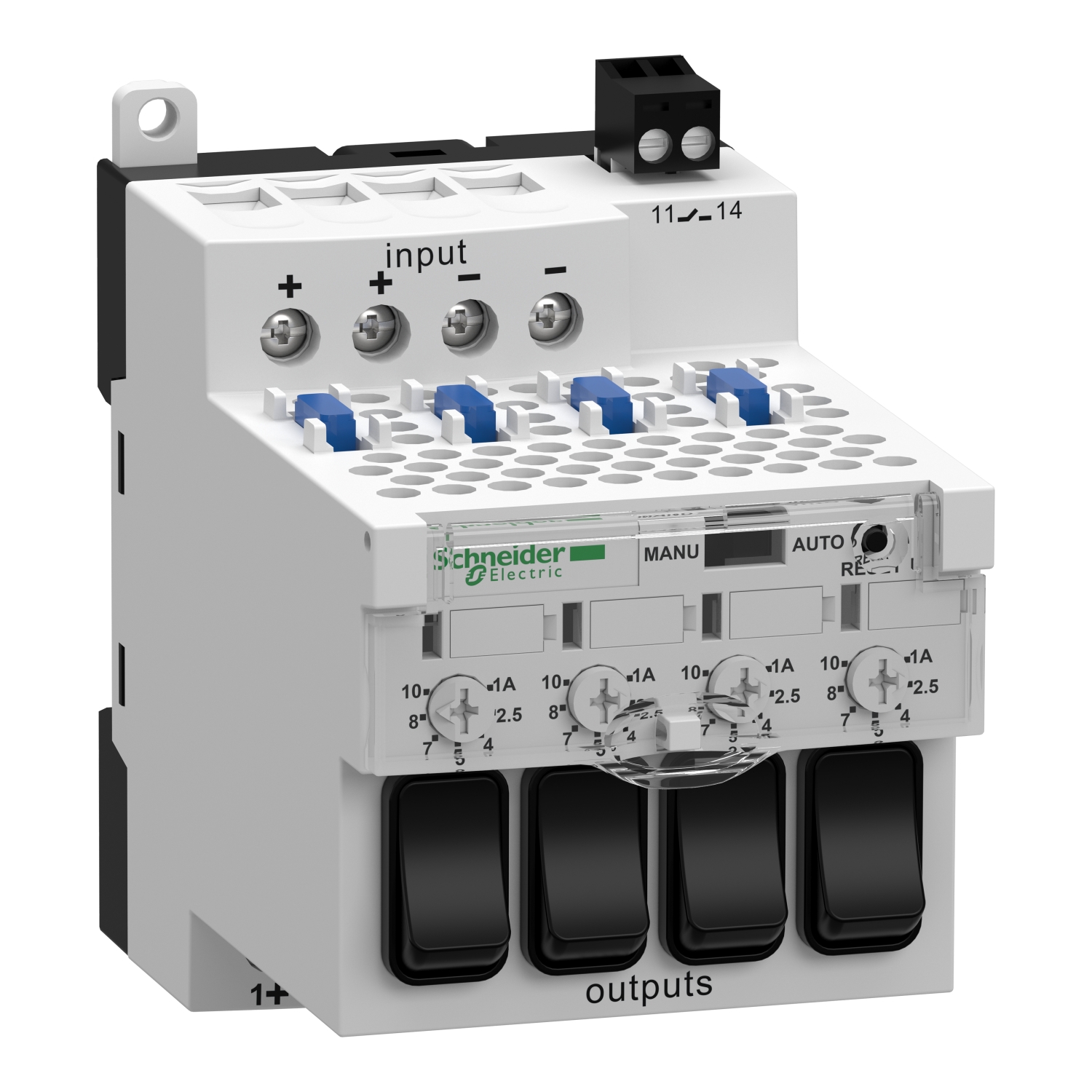

Tip
ABL8
Nazivni tok (A)
10
Vhodna napetost (V)
24-28.8 V
Tip vhodne napetosti
DC
Izhodna napetost (V)
24-28.8 V
Tip izhodne napetosti
DC
Number of contacts as normally open contact
0
Number of contacts as change-over contact
0
Number of contacts as normally closed contact
4
Type of electric connection
Screw connection
Rated control supply voltage Us at AC 50HZ (V)
19…32 V
Rated control supply voltage Us at AC 60HZ (V)
19…32 V
Voltage type for actuating
AC/DC
Rated control supply voltage Us at DC (V)
24 V
Voltage type of supply voltage
AC/DC
Height (mm)
110
Width (mm)
71
Depth (mm)
103
With detachable clamps
Yes
Three-phase over current possible
No
Contains function DC-voltage under current
Yes
Three-phase under current possible
No
Current measurement range (A)
10…40 Ampere
Single-phase over current possible
No
External current transformer
No
Single-phase under current possible
No
Single-phase hysteresis possible
No
Three-phase hysteresis possible
No
Function DC-current hysteresis
No
Contains function DC-voltage over current
Yes
Voltage type (operating voltage)
AC/DC
