Tip
CRN
Namen

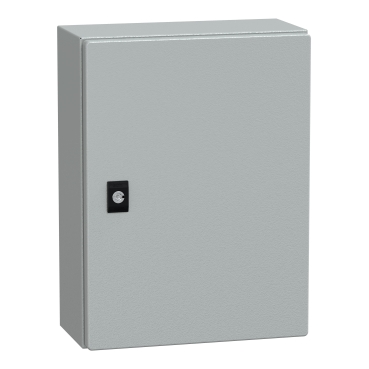

univerzalna omara
Višina omare (mm)
400
Širina omare (mm)
300
Globina omare (mm)
150
Material
kovina
Tip vrat
navadna
Število vrat
1
Tip namestitve
zidna omara
IP zaščita
IP66
RAL
RAL7035
Montažna plošča
ne
Degree of protection (IP)
IP66
Colour
Grey
Height (mm)
400
Width (mm)
300
Depth (mm)
150
Degree of protection (NEMA)
1/ 2/ 3/ 3R/ 4/ 5/ 12/ 13
Material
Steel
With mounting plate
No
With glazed door
No
Wall fastening possible
Yes
Suitable for metrical mounting
No
RAL-number
7035
Tackable
No
Pitched roof
No
Surface finishing
Powder coating
Number of doors
1
Suitable for outdoor set-up
No
Number of locks
1
Material quality
Other
Wall build in
No
Mounting plate depth-adjustable
No
Impact strength
IK10
With ventilation door
No
EMC-version
No
Pole fastening
Yes
With backside door
No
Floor installation possible
No
Number of connector holes
0
Pre-stamping
No
Transparent cover
No
With cover
No
Couplable
No
Freestanding
No
Floor standing wall model
No
Intermediate mounting
No
Corner model
No
Suitable for wall mounting
Yes
Max. permissible load of the mounting plate according to IEC 62208 (Newton)
250
With door
Yes
Max. permissible load of the door(s) according to IEC 62208 (Newton)
50
