Degree of protection (IP)
Other
Rated voltage (V)
250
Colour outer sheath
Black
Halogen free
Yes
Cable type
Other
Oil resistant (acc. EN 60811-404)
Yes
Material housing
Other
Shape
Round
Material outer sheath
Other
Screen over stranding
None
Nominal cross section conductor (AWG) (1000 circular mil)
10
Permitted cable outer temperature during assembling/handling (°C)
-16…65 °C
Torsion resistant
Yes
Outer diameter approx. (mm)
14
Permitted cable outer temperature after assembling without vibration (°C)
-10…60 °C
Screen over stranding element
None
Halogen free (acc. EN 60754-1/2)
Yes
Nominal cross section conductor (mm²)
1.5
Low temperature resistant (acc. EN 60811-504+505+506)
Yes
Core insulation material
Polyamide (PA)
Nominal voltage U0 (V)
250
Specification material outer sheath
Polyethylene (PE)
Specification core insulation
Polyethylene (PE)
Min. permitted bending radius, stationary application/permanent installation (mm)
45
Min. permitted bending radius, moving application/free movement (mm)
90
Min. permitted bending radius, moving application with forced guidance (mm)
180
AWG size
Other
Protective conductor
Yes
Nominal voltage U (V)
250
Stranding element
Triple
Cable width approx. (mm)
3000
Cable height approx. (mm)
0.7
Number of cores
3
Core identification
Colour
Suspension element
Other
Conductor category
Class 5 = flexible
Euro class acidity according to EN 13501-6
A1
Smoke development class according to EN 13501-6
S2
Reaction-to-fire class according to EN 13501-6
Eca
Euro class flaming droplets/particles according to EN 13501-6
D0
Colour housing
Black
Conductor material
Copper
Cable diameter (mm)
14 Millimetre
Mechanical coding
No
Halogen free according to EN IEC 60754-1
Yes
Halogen free according to EN IEC 60754-2
Yes
Halogen free according to EN IEC 60754-3
Yes
Armouring/reinforcement
None
With protective conductor
Yes
Material armouring
Copper
Low smoke according to EN IEC 61034-2
Yes
Conductor surface
Other
Protective barrier
Rubber - ethylene propylene rubber (EPR)
Max. conductor temperature (Degrees celsius)
65
Shape of conductor
Round
Drain wire
No
Screen
No
Core identification according to HD 308 S2
No
Flame retardant according to IEC 60332-1-2
Yes
Flame retardant according to IEC 60332-3-22 (Cat A)
No
Flame retardant according to IEC 60332-3-21 (Cat A F/R)
Yes
Flame retardant according to IEC 60332-3-24 (Cat C)
Yes
Flame retardant according to IEC 60332-3-23 (Cat B)
Yes
Flame retardant according to IEC 60332-3-25 (Cat D)
Yes
Cable geometry
Round
Surface treatment contacts
Untreated
Contact material
CuZn
Conductor end treatment
Other
Max. operating temperature at conductor (Degrees celsius)
65
Cable permanent temperature-resistant to (Degrees celsius)
65

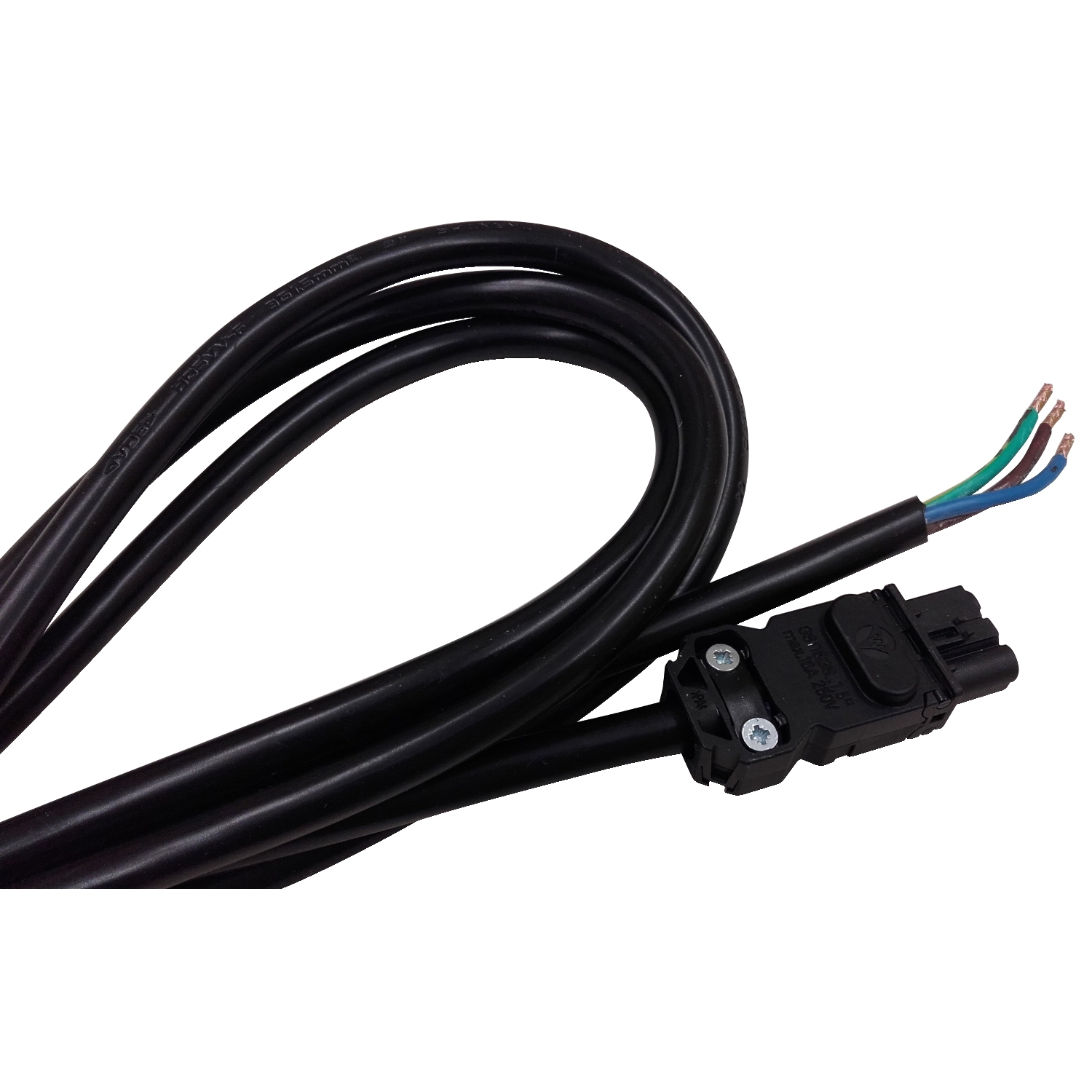

Type of finished cable
Power cord
Type of locking
None
Type side 1
Other
Type side 2
Other
Total length (Millimetre)
3000
Colour coding/contact insert
Black
Pole codification
Other
