Tok
32
Št. polov
3 P+E
Tip napetosti
AC
IP zaščita
IP44
Montaža
ravna

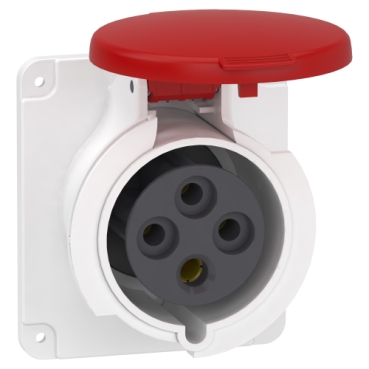

Vrsta produkta
vtičnica
Max. napetost (V)
415 V
Degree of protection (IP)
IP44
Number of poles
4
Material
Plastic
RAL-number
7035
Rated voltage (V)
380…415 Volt
Cable entry
None
IEC-amperage (A)
32
Connection system
Screw less terminal
Voltage acc. EN 60309-2
400 V (50+60 Hz) red
Identification colour
Red
Clock hour position (h)
6
Military model
No
Flange size vertical (mm)
100
Flange size horizontal (mm)
90
Angle of plug
Straight
Rated frequency (Hz)
50…60 Hertz
Drill hole distance horizontal (mm)
77
Drill hole distance vertical (mm)
85
