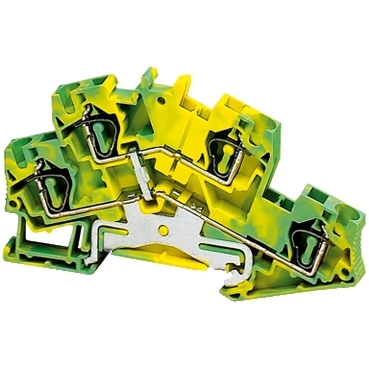

Tip
TRR
Namen
zaščitna ozemljitev
Vrsta priklopa
vzmetni
Št. polov
dvojna
Barva
zeleno-rumena
Nominalni presek (mm²)
4 mm²
Velikost
standard
Connectable conductor cross section solid-core (mm²)
0.08…6 Square millimetre
Connectable conductor cross section multi-wired (mm²)
0.08…4 Square millimetre
Mounting method
DIN rail (top hat rail) 35 mm
Colour
Green/yellow
Length (mm)
92.4
Height (mm)
55
Width (mm)
6.2
Depth (mm)
92.4
Width/grid dimension (mm)
6.2
Connectable conductor cross section fine-strand with cable end sleeve (mm²)
0.08…4 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve (mm²)
0.08…4 Square millimetre
Operation temperature (°C)
-40…130 Degrees celsius
Number of levels
2
Type of electrical connection 2
Spring clamp connection
Type of electrical connection 1
Spring clamp connection
Inflammability class of insulation material acc. with UL94
V0
Height at lowest possible mounting height (mm)
55
Closing plate required
Yes
Connection position
Above
Material insulation body
Thermoplastic
Number of clamp positions per level
2
PEN function possible
No
