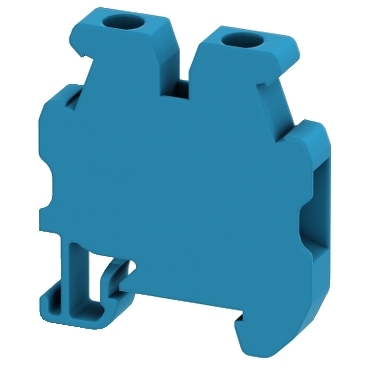

Tip
TRV
Namen
ničelna
Vrsta priklopa
vijačni
Št. polov
enojna
Barva
črna
Nominalni presek (mm²)
2.5 mm²
Velikost
mini
Rated voltage (V)
500
Connectable conductor cross section solid-core (mm²)
0.2…4 Square millimetre
Connectable conductor cross section multi-wired (mm²)
0.2…2.5 Square millimetre
Mounting method
DIN rail (top hat rail) 15 mm
Colour
Blue
Length (mm)
30
Height (mm)
34
Width (mm)
52
Depth (mm)
30
Rated current In (A)
24
Width/grid dimension (mm)
5.2
Connectable conductor cross section fine-strand with cable end sleeve (mm²)
0.2…2.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve (mm²)
0.2…2.5 Square millimetre
Operation temperature (°C)
-40…130 Degrees celsius
Number of levels
1
Type of electrical connection 2
Screw connection
Type of electrical connection 1
Screw connection
Internally connected stages
No
Inflammability class of insulation material acc. with UL94
V0
Height at lowest possible mounting height (mm)
34
Closing plate required
Yes
Connection position
Sideways
Explosion-tested version 'Ex e'
Yes
Material insulation body
Thermoplastic
Number of clamp positions per level
2
Suitable for conductor material
Aluminium/copper
