Tip

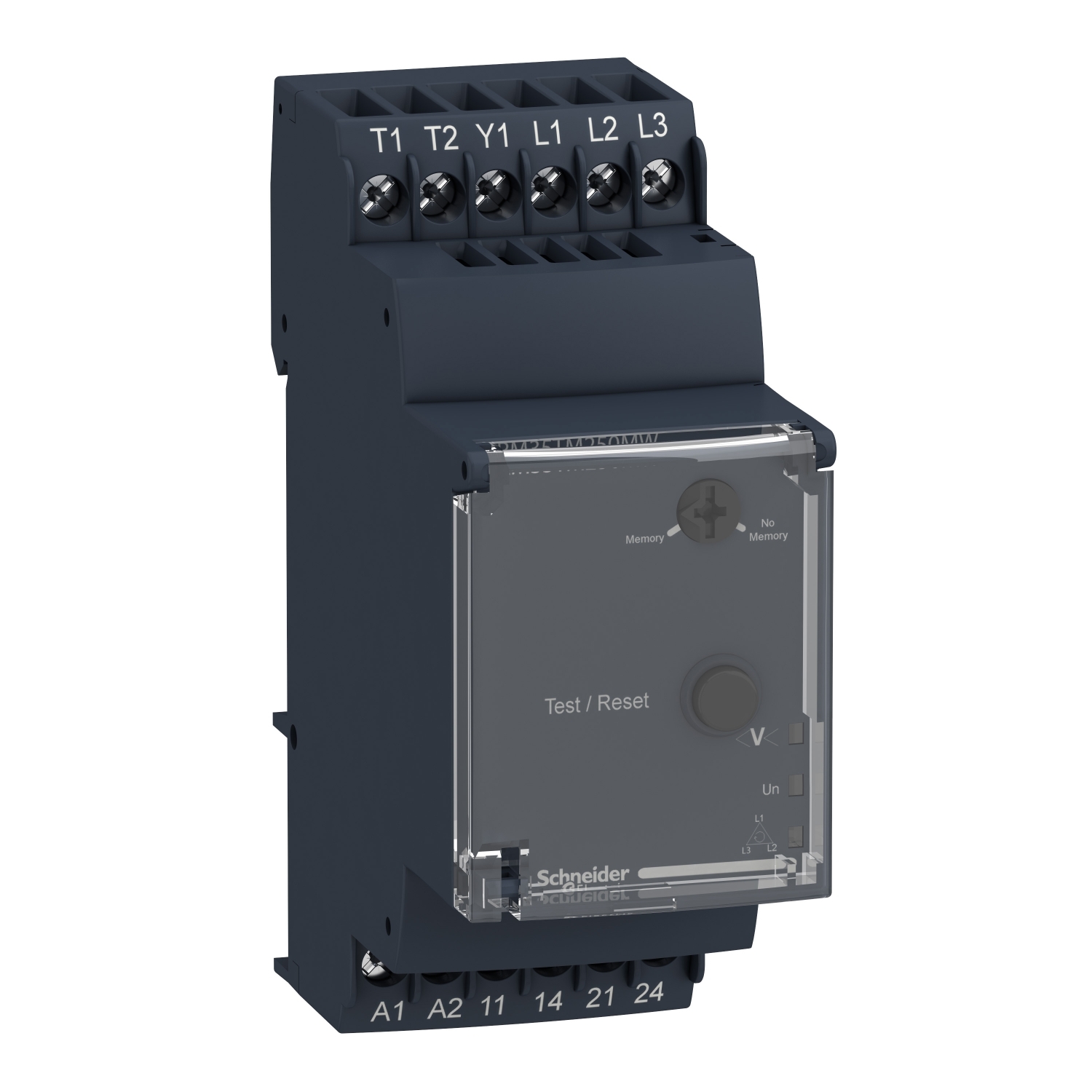

RM35
Širina (mm)
35
Nazivni tok (A)
5
Št. kontaktov
2 NO
Izhod
relejski
Funkcija
nadzor faz / temp.motorja
Kontrola
tri fazna kontrola
Tip merilne napetosti
AC/DC
Max. preklopna napetost
250 V
Tip preklopne napetosti
AC/DC
Number of contacts as normally open contact
2
Number of contacts as change-over contact
0
Number of contacts as normally closed contact
0
Type of electric connection
Screw connection
Rated control supply voltage Us at AC 50HZ (V)
24…240 V
Rated control supply voltage Us at AC 60HZ (V)
24…240 V
Voltage type for actuating
AC/DC
Rated control supply voltage Us at DC (V)
24…240 V
Voltage type of supply voltage
AC/DC
External reset possible
Yes
Height (mm)
90
Width (mm)
35
Depth (mm)
72
With detachable clamps
No
Error registration possible
Yes
Number of measuring circuits
2
