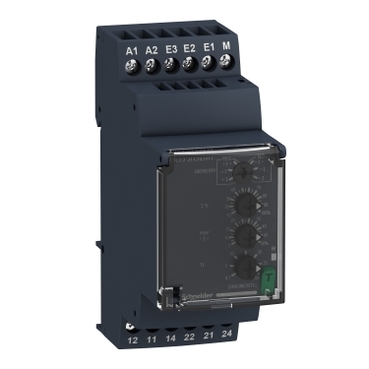

Tip
RM35
Širina (mm)
35
Nazivni tok (A)
8
Št. kontaktov
2 C/O
Območje časovnega zamika
0.1 s - 30 s
Izhod
relejski
Funkcija
nadtokovna / podtokovna
Kontrola
eno fazna kontrola toka
Tip merilne napetosti
AC
Max. preklopna napetost
250 V
Tip preklopne napetosti
AC
Number of contacts as normally open contact
2
Number of contacts as change-over contact
2
Number of contacts as normally closed contact
2
Type of electric connection
Screw connection
Rated control supply voltage Us at AC 50HZ (V)
380…415 V
Rated control supply voltage Us at AC 60HZ (V)
380…415 V
Voltage type for actuating
AC
Rated control supply voltage Us at DC (V)
380…415 V
Voltage type of supply voltage
AC
Height (mm)
90
Width (mm)
35
Depth (mm)
73
With detachable clamps
No
Three-phase over current possible
No
Contains function DC-voltage under current
Yes
Three-phase under current possible
No
Current measurement range (A)
0.15…15 Ampere
Single-phase over current possible
Yes
External current transformer
No
Single-phase under current possible
Yes
Single-phase hysteresis possible
Yes
Three-phase hysteresis possible
No
Function DC-current hysteresis
Yes
Contains function DC-voltage over current
Yes
Max. permitted off-delay time (s)
30
Min. adjustable off-delay time (s)
0.1
Max. permitted delay-on energization time (s)
0.3
Min. adjustable delay-on energization time (s)
0.1
