Tip

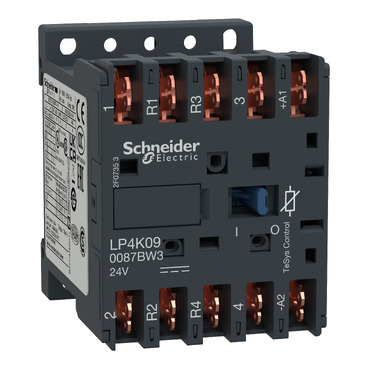

LP4K
Max. nazivni tok (A)
20
Frekvenca (Hz)
50/60 Hz
Vrsta priklopa
vijačni
Število pomožnih kontaktov kot normalno odprtih kontaktov (NO)
0
Število pomožnih kontaktov kot normalno zaprtih kontaktov (NC)
0
Št. polov
2/2 P
Tip napetosti
DC
Krmilna napetost (V)
24 V
Tip bremena
AC-1
Vrsta kontaktorja
miniaturni
Voltage type for actuating
DC
Rated control supply voltage Us at DC (V)
24 Volt
Type of electrical connection of main circuit
Flat plug-in connection
Height (mm)
58
Width (mm)
45
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Depth (mm)
57
Number of normally closed contacts as main contact
2
Number of main contacts as normally open contact
2
Modular version
No
Rated operation current Ie at AC-1, 400 V (A)
20
