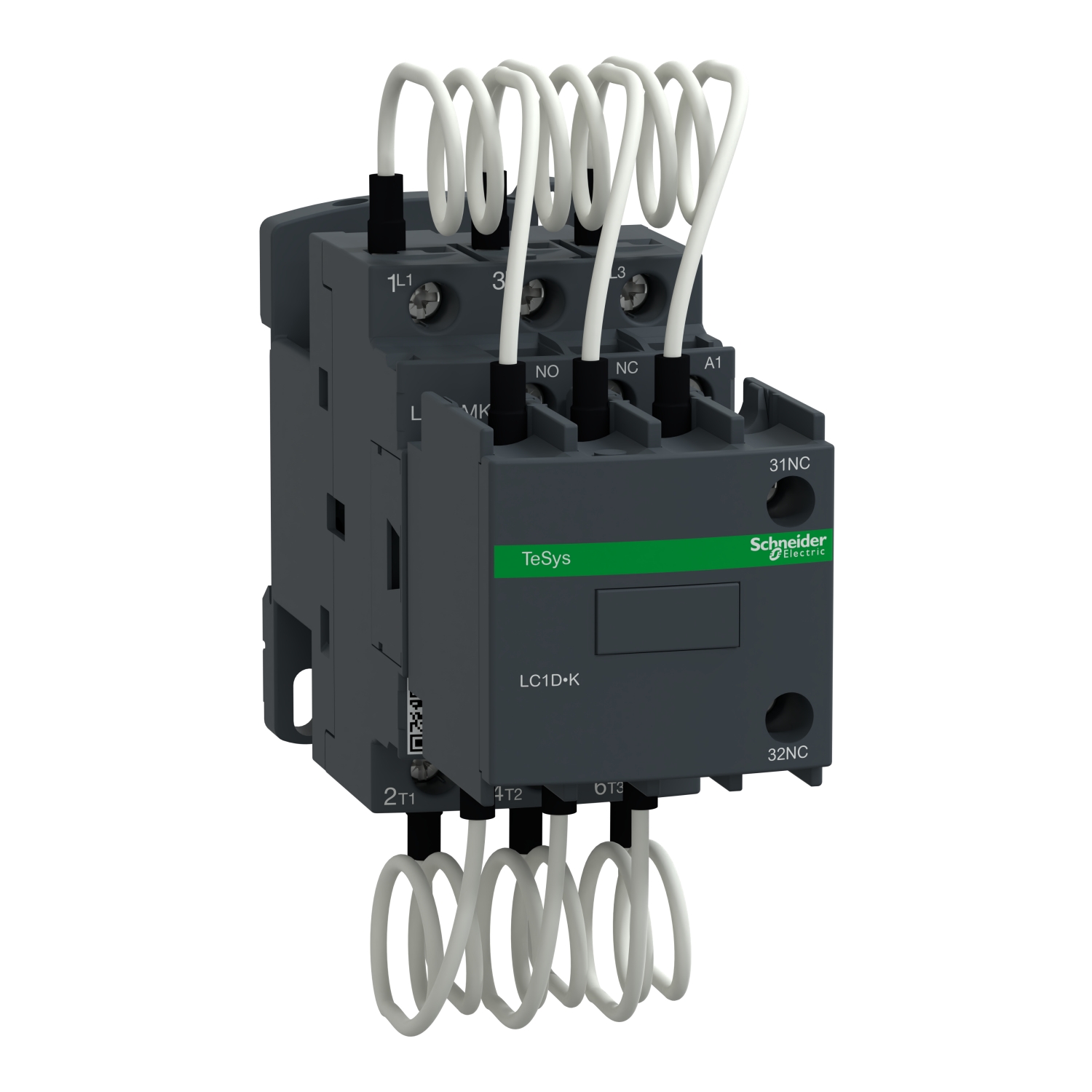

Tip
LC1D
Frekvenca (Hz)
50/60 Hz
Vrsta priklopa
vijačni
Število pomožnih kontaktov kot normalno odprtih kontaktov (NO)
1
Število pomožnih kontaktov kot normalno zaprtih kontaktov (NC)
1
Št. polov
3 P
Tip napetosti
AC
Krmilna napetost (V)
415 V
Tip bremena
AC-6B
Vrsta kontaktorja
kompenzacijski
Rated control supply voltage Us at AC 50HZ (V)
415 Volt
Rated control supply voltage Us at AC 60HZ (V)
415 Volt
Voltage type for actuating
AC
Type of electrical connection of main circuit
Screw connection
Height (mm)
125
Width (mm)
45
Number of auxiliary contacts as normally closed contact
2
Number of auxiliary contacts as normally open contact
1
Depth (mm)
127
Number of normally closed contacts as main contact
0
Number of main contacts as normally open contact
3
Rated blind power at 400 V, 50 Hz (kvar)
25
Operating voltage at AC 50 Hz (V)
440 Volt
Operating voltage at AC 60 Hz (V)
440 Volt
Rated blind power at 400 V, 60 Hz (Kilo-blindpower)
25
