Tip

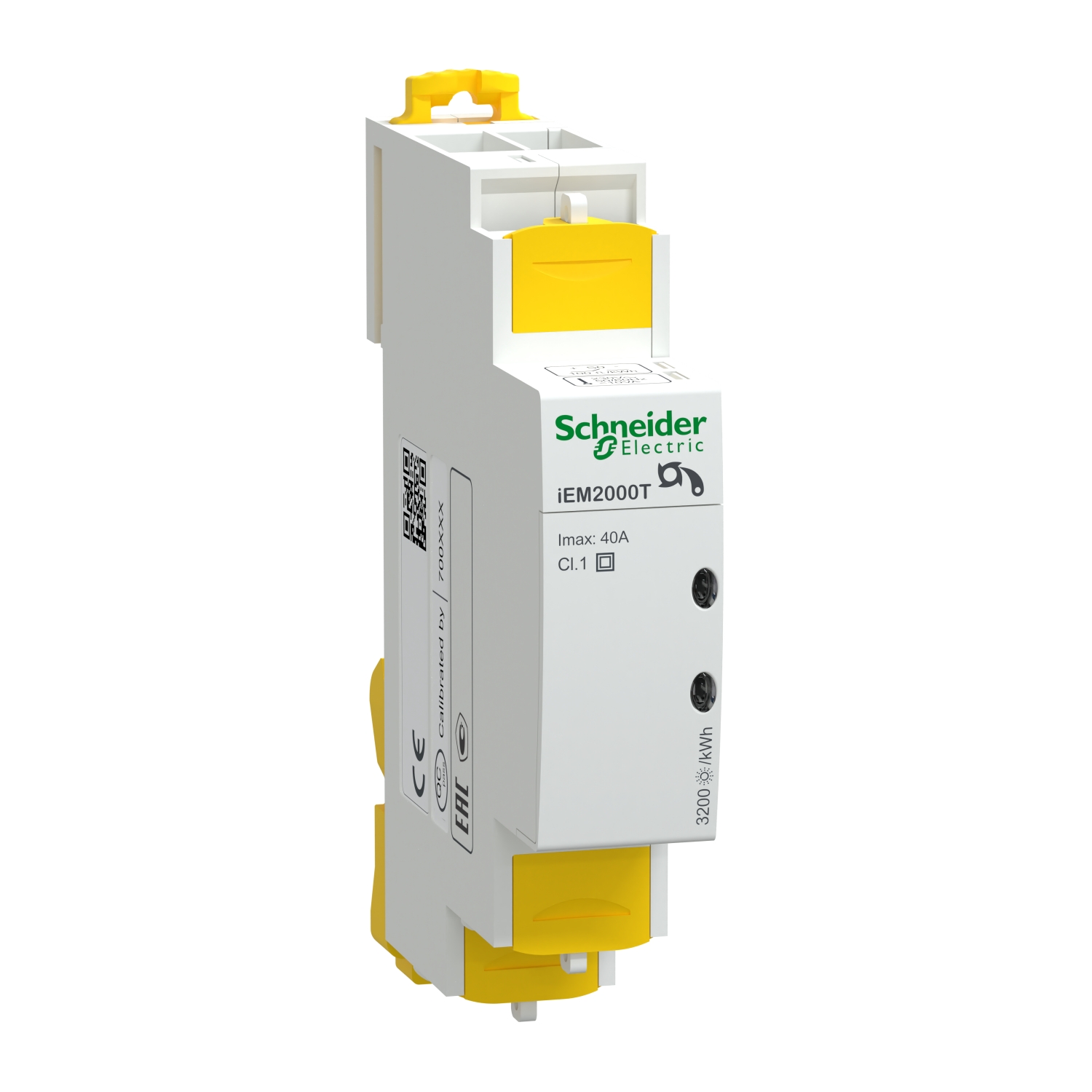

iEM2000
Montaža
DIN letev
Komunikacija
brez
Vrsta produkta
merilnik
Merjenje (A)
40 A
Zahtevnost merjenja
osnovno
Frequency (Hz)
48…62 Hertz
Width in number of modular spacings
1
Degree of protection (IP)
IP40
Model
Direct measurement
Mounting method
DRA (DIN-rail adapter)
Height (mm)
95
Width (mm)
18
Depth (mm)
67
Degree of protection (NEMA)
4X
Suitable for
Purchase
Power consumption (W)
8
Type of interface
None
Max. current (Imax) (A)
40
Calibrated
Yes
Approval
Domestic
Pulse output
Electrical
Escapement mechanism
No
Energy type
Effective power and blind power
Accuracy class
B
Number of positions total (counter)
0
Tariff type
One-tariff
Type of indication
Digital
Pole type
Single phase
Measuring type load profile
No
EEC40 signature
No
With lock code
No
Nominal current (In) (A)
40
Type of meter
Electronic
Nominal voltage (Un) N-L (V)
184…276 Volt
Pulse type
S0
Pulse rate (Imp/kWh (kvarh))
100 Pulse constant
