Tip

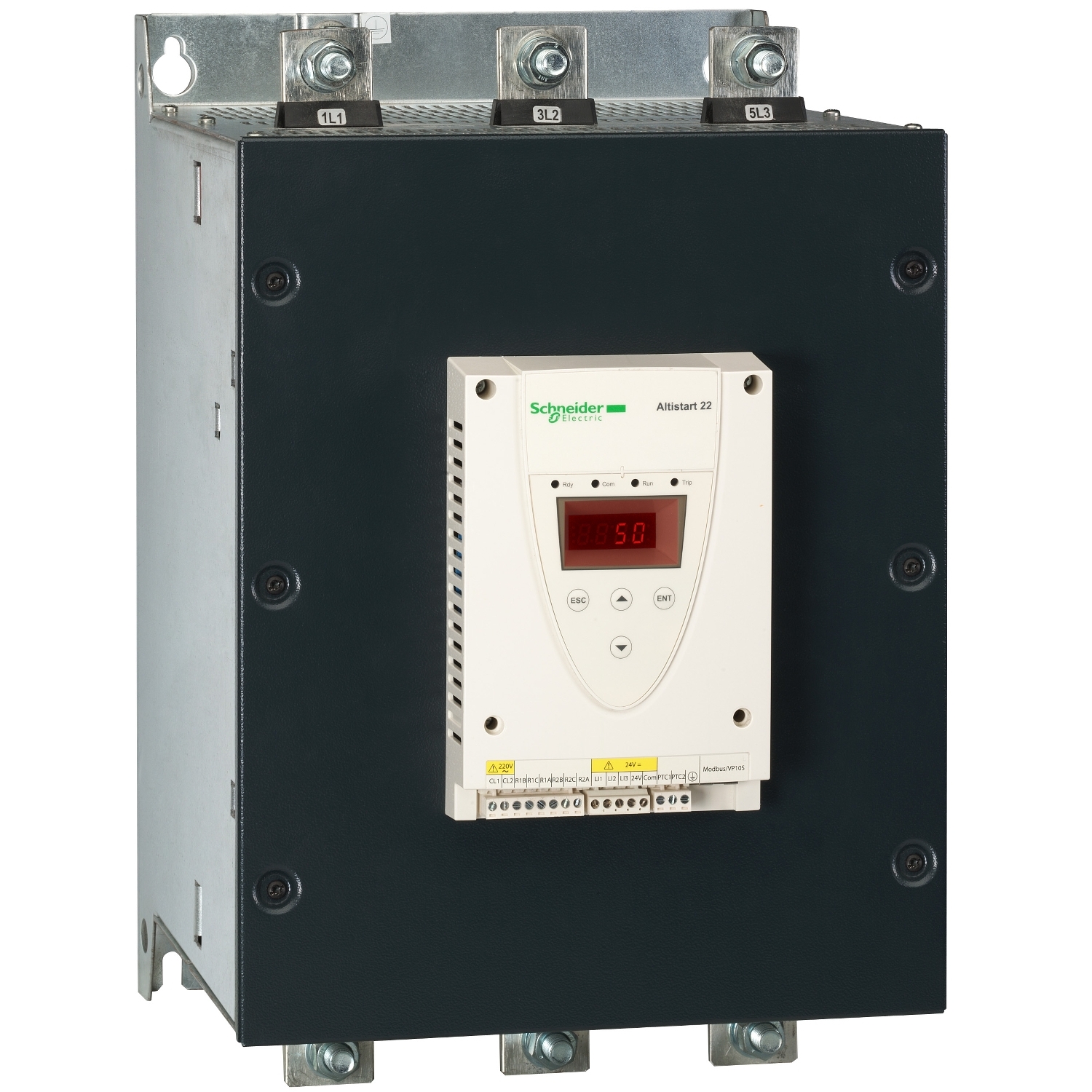

ATS22
Max. nazivni tok (A)
480
Krmilna napetost (V)
230 V
Število faz
3
Max. nazivna moč pri 400 V AC (AC-3)
250
Uporaba
srednje zahtevne aplikacije - HVAC
Napetost obratovanja (AC)
230-440 V
Nadzor toka (faze)
3
Stopnja zaščite (IP)
IP20
Max. nazivna moč pri 230 V AC (AC-3)
132 kW
Vir krmilne napetosti
zunanji
Tip krmilne napetosti
AC
Komunikacija
Modbus RS485
Bypass funkcija
da
Dodatek zaščitna enota
NSX630
Dodatek kontaktor
LC1F500
Degree of protection (IP)
IP20
Rated control supply voltage Us at AC 50HZ (V)
230 Volt
Rated control supply voltage Us at AC 60HZ (V)
220…230 Volt
Voltage type for actuating
AC
Rated control supply voltage Us at DC (V)
24 Volt
Function
Single direction
Release class
Other
Rated operating voltage Ue (V)
230…440 Volt
With display
No
Rated operation current Ie at 40 °C Tu (A)
480
Internal bypass
Yes
Torque control
Yes
Rated power three-phase motor, inline, at 230 V (kW)
132
Rated power three-phase motor, inline, at 400 V (kW)
250
Integrated motor overload protection
Yes
Rated surrounding temperature without derating (°C)
40
Rated power three-phase motor, inside delta, at 230 V (kW)
220
Rated power three-phase motor, inside delta, at 400 V (kW)
355
