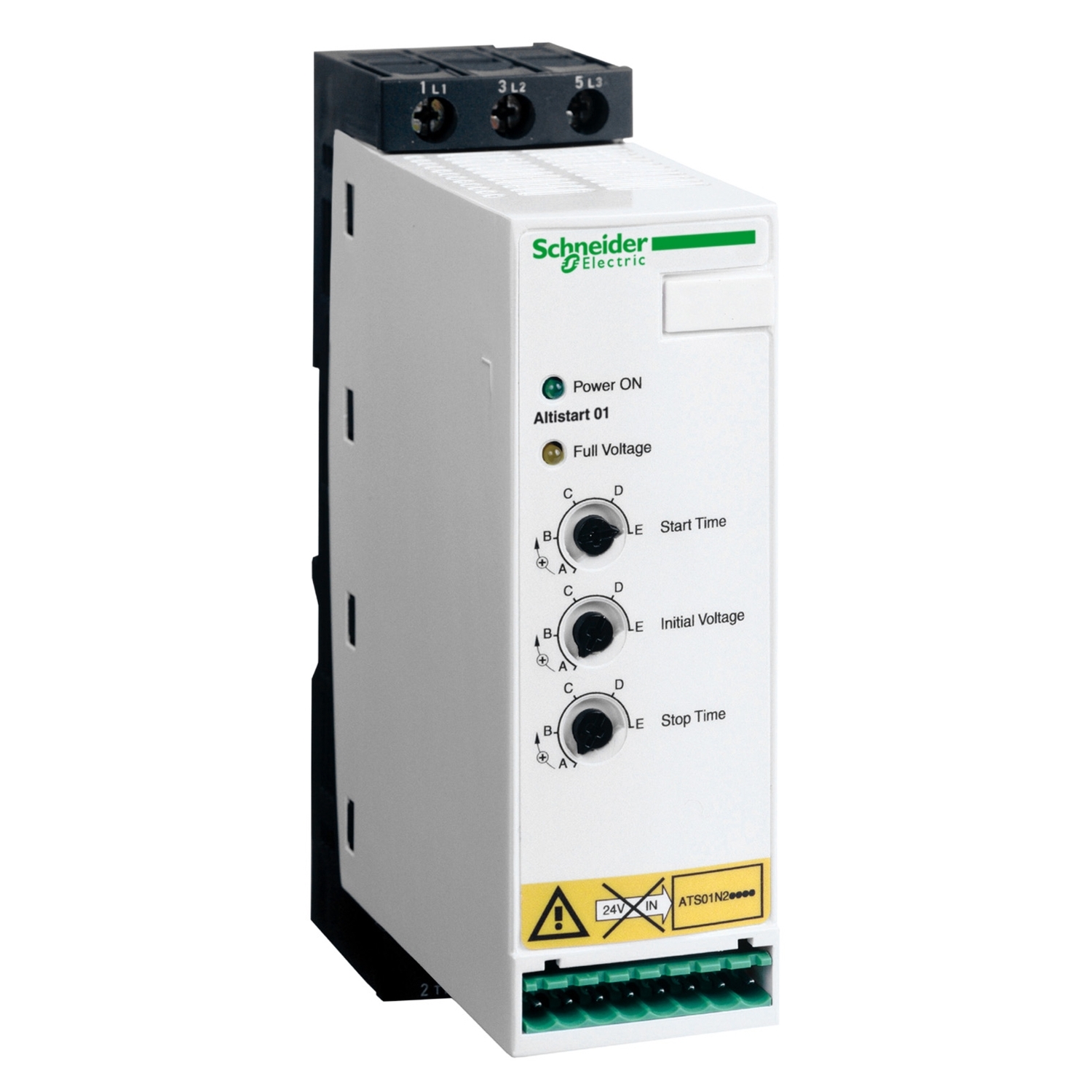

Tip
ATS01
Max. nazivni tok (A)
22
Krmilna napetost (V)
24 V
Število faz
3
Uporaba
enostavne aplikacije
Napetost obratovanja (AC)
380-415 V
Nadzor toka (faze)
1
Stopnja zaščite (IP)
IP20
Max. nazivna moč pri 230 V AC (AC-3)
7.5 kW
Vir krmilne napetosti
notranji
Tip krmilne napetosti
DC
Komunikacija
ne
Bypass funkcija
da
Dodatek zaščitna enota
GVME22
Dodatek kontaktor
LC1D25
Degree of protection (IP)
IP20
Voltage type for actuating
AC/DC
Function
Single direction
Release class
Other
Rated operating voltage Ue (V)
380…415 Volt
With display
Yes
Rated operation current Ie at 40 °C Tu (A)
22
Internal bypass
Yes
Torque control
No
Rated power three-phase motor, inline, at 400 V (kW)
7.5
Integrated motor overload protection
No
Rated surrounding temperature without derating (°C)
40
