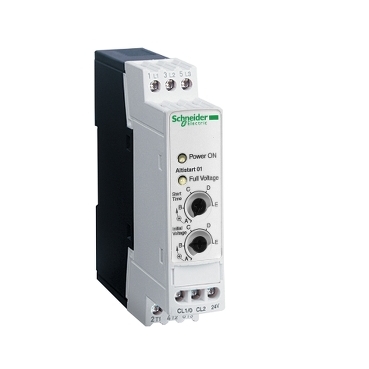

Tip
ATS01
Max. nazivni tok (A)
3
Krmilna napetost (V)
24 V
Število faz
1
Max. nazivna moč pri 400 V AC (AC-3)
1.1
Uporaba
enostavne aplikacije
Napetost obratovanja (AC)
110-480 V
Nadzor toka (faze)
1
Stopnja zaščite (IP)
IP20
Max. nazivna moč pri 230 V AC (AC-3)
0.37 kW
Vir krmilne napetosti
zunanji
Tip krmilne napetosti
DC
Komunikacija
ne
Bypass funkcija
da
Dodatek zaščitna enota
GV2ME05
Dodatek kontaktor
LC1D09***
Degree of protection (IP)
IP20
Rated control supply voltage Us at AC 50HZ (V)
110…240 Volt
Rated control supply voltage Us at AC 60HZ (V)
110…240 Volt
Voltage type for actuating
AC/DC
Rated control supply voltage Us at DC (V)
24 Volt
Function
Single direction
Release class
Other
Rated operating voltage Ue (V)
110…480 Volt
With display
No
Rated operation current Ie at 40 °C Tu (A)
3
Internal bypass
Yes
Torque control
No
Rated power three-phase motor, inline, at 230 V (kW)
0.55
Rated power three-phase motor, inline, at 400 V (kW)
1.1
Integrated motor overload protection
No
Rated surrounding temperature without derating (°C)
40
