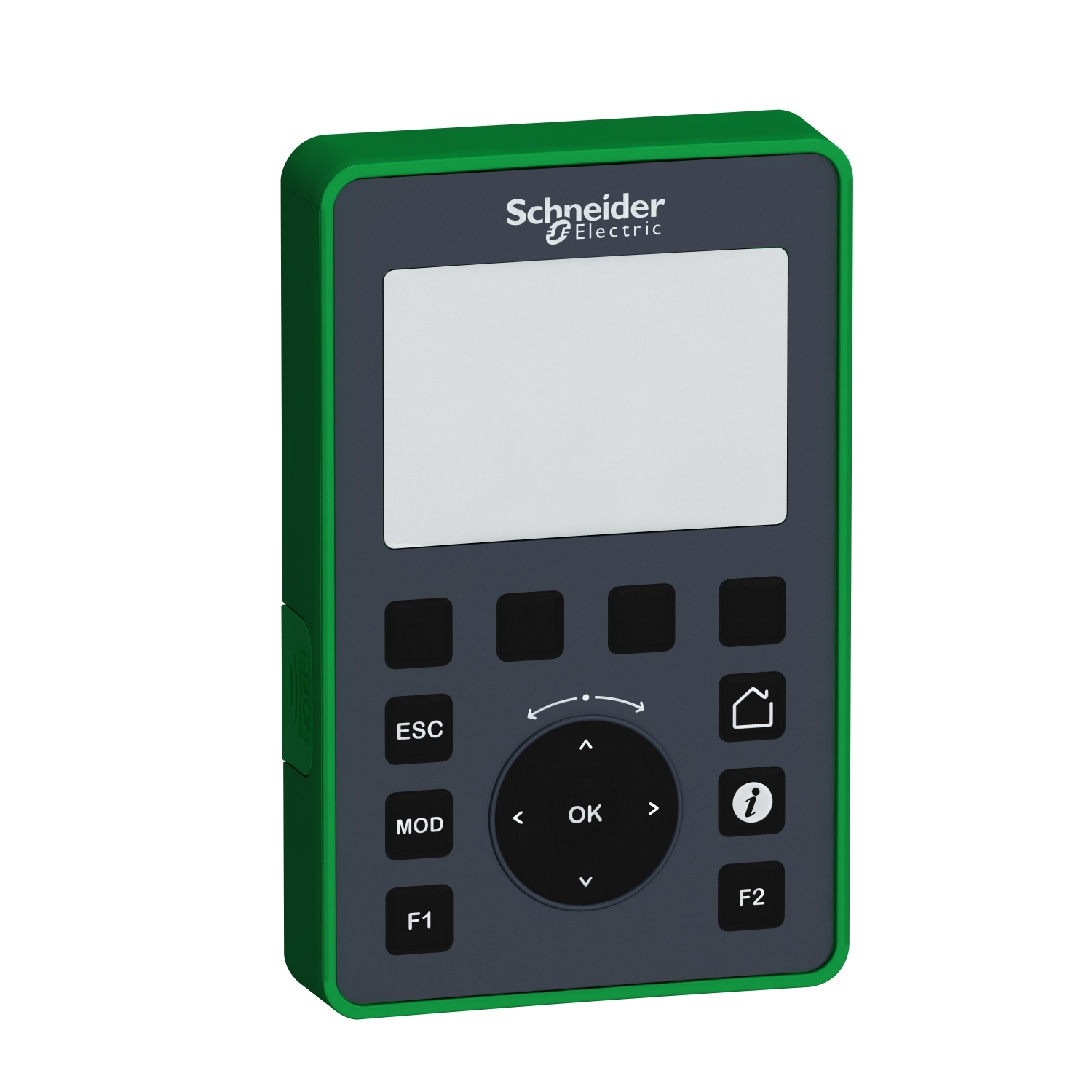

Vrsta produkta
zaslon
Built-in depth (mm)
63
Voltage type of supply voltage
DC
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
No
Supporting protocol for TCP/IP
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Rail mounting possible
Yes
Supporting protocol for DeviceNet
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for LON
No
Supporting protocol for other bus systems
No
Supporting protocol for SUCONET
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
Supporting protocol for KNX
No
IO link master
No
Suitable for safety functions
No
Supply voltage DC (V)
5 Volt
Wall mounting/direct mounting
Yes
Degree of protection (IP), front side
IP65/IP67
Number of interfaces PROFINET
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
1
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces industrial Ethernet
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces Wireless
0
Power consumption (W)
1
With message indication
Yes
Number of function buttons, programmable
4
Number of grey-scales/blue-scales of display
0
With numeric keyboard
No
With alpha numeric keyboard
No
Number of buttons with LED
0
With message system (incl. buffer and confirmation)
Yes
Process value representation (output) possible
No
Type of display
STN
Number of password levels
1
With printer output
No
Process default value (input) possible
No
With recipes
No
Number of online languages
6
Additional software components, loadable
Yes
Touch technology
None
With SW interfaces
No
Operation temperature (°C)
-15…50 Degrees celsius
Screen diagonal (in)
2.75
Number of system buttons
6
Number of pixels, horizontal
240
With colour display
No
Number of colours of the display
1
Width of the front (mm)
126
Height of the front (mm)
80
Number of pixels, vertical
160
Supporting protocol for EtherCAT
No
Certified for UL hazardous location division 2
No
Certified for UL hazardous location class I
No
Certified for UL hazardous location class III
No
Certified for UL hazardous location division 1
No
Certified for UL hazardous location class II
No
Certified for UL hazardous location group C (ethylene)
No
Certified for UL hazardous location group A (acetylene)
No
Certified for UL hazardous location group B (hydrogen)
No
Certified for UL hazardous location group F (carbonaceous dusts)
No
Certified for UL hazardous location group G (non-conductive dusts)
No
Certified for UL hazardous location group D (propane)
No
Certified for UL hazardous location group E (metal dusts)
No
