Tip

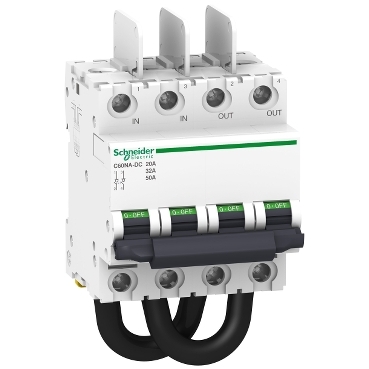

C60-DC
Tok
20
Kratkostična zmogljivost
10 kA
Izklopilna krivulja
Krivulja B
Napetost
DC
Št. polov
2 P
Built-in depth (mm)
77.4
Width in number of modular spacings
4
Degree of protection (IP)
IP40
Rated current (A)
20
Rated voltage (V)
800
Voltage type
DC
Number of contacts as normally open contact
2
Number of contacts as change-over contact
0
Number of contacts as normally closed contact
0
Rated switching capacity (kA)
1
With signal lamp
No
Short-circuit breaking capacity (Icw) (kA)
0.6
Switching function
Off switch
Colour calotte
Black
Forced segregation (according to DIN VDE 0113)
No
Number of poles
2
Min. rated voltage (V)
300
Imprint/indication
None
Forced segregation according to DIN VDE 0113
No
