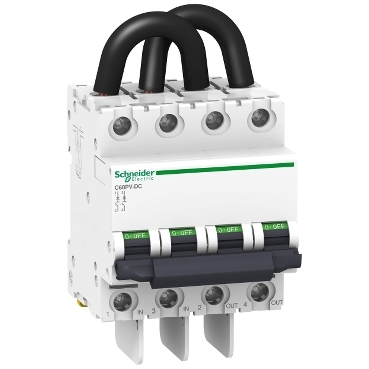

Tip
C60-DC
Tok
20
Kratkostična zmogljivost
10 kA
Izklopilna krivulja
Krivulja B
Napetost
DC
Št. polov
2 P
Built-in depth (mm)
44
Frequency (Hz)
50 Hertz
Number of poles (total)
2
Rated insulation voltage Ui (V)
1000
Width in number of modular spacings
4
Number of protected poles
2
Additional equipment possible
Yes
Rated impulse withstand voltage Uimp (kV)
6
Degree of protection (IP)
Other
Rated current (A)
20
Rated voltage (V)
800
Release characteristic
B
Concurrently switching N-neutral
No
Voltage type
DC
Connectable conductor cross section solid-core (mm²)
1…25 Square millimetre
Over voltage category
4
Ambient temperature during operating (°C)
-25…70 Degrees celsius
Connectable conductor cross section multi-wired (mm²)
1…16 Square millimetre
Pollution degree
2
Suitable for flush-mounted installation
No
Current limiting class
0
Flush-mounted installation
No
Explosion-proof
No
Power loss (Watt)
11.8
