Max. nazivna moč pri 400 V AC (kW)
18.5
Vrsta kontaktorja
zvezda trikot
Degree of protection (IP)
IP20
Rated control supply voltage Us at AC 50HZ (V)
110 Volt
Rated control supply voltage Us at AC 60HZ (V)
110 Volt
Voltage type for actuating
AC
Function

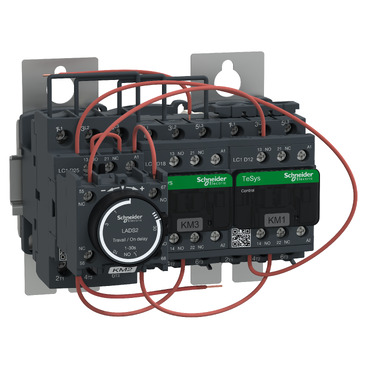

Star-delta contactor
Type of electrical connection of main circuit
Screw connection
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Height (mm)
124
Width (mm)
144
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
0
Depth (mm)
143
Rail mounting possible
Yes
Rated operation power NEMA (kW)
7.46
Rated operation current Ie at AC-3, 400 V (A)
18
Degree of protection (NEMA)
Other
Number of normally closed contacts as main contact
0
Number of main contacts as normally open contact
3
Rated operation current Ie at AC-1, 400 V (A)
32
Operating voltage at AC 50 Hz (V)
440 Volt
Operating voltage at AC 60 Hz (V)
440 Volt
Voltage type (operating voltage)
AC
