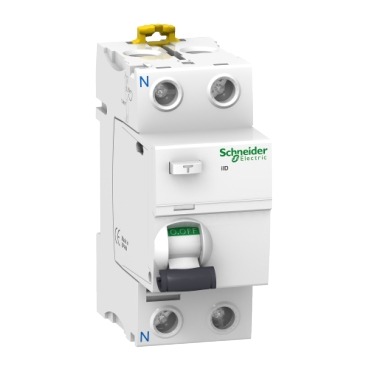

Tip
RCCB
Tok
16
Št. polov
2 P
Občutljivost (mA)
10 mA
Tip zaščite
AC
Built-in depth (mm)
44
Rated insulation voltage Ui (V)
500
Width in number of modular spacings
2
Additional equipment possible
Yes
Rated impulse withstand voltage Uimp (kV)
6
Degree of protection (IP)
IP20
Rated current (A)
16
Rated voltage (V)
230
Voltage type
AC
Connectable conductor cross section solid-core (mm²)
1…35 Square millimetre
Ambient temperature during operating (°C)
-5…60 Degrees celsius
Connectable conductor cross section multi-wired (mm²)
1…25 Square millimetre
Pollution degree
3
Mounting method
DIN rail
Number of poles
2
RAL-number (akin)
9003
Short-time delayed tripping
No
Frequency
50/60 Hz
Surge current capacity (kA)
0.25
Rated fault current (mA)
0.01
Selective protection
No
With interlocking device
No
Leakage current type
AC
Explosion-proof
No
Power loss (Watt)
1.3
