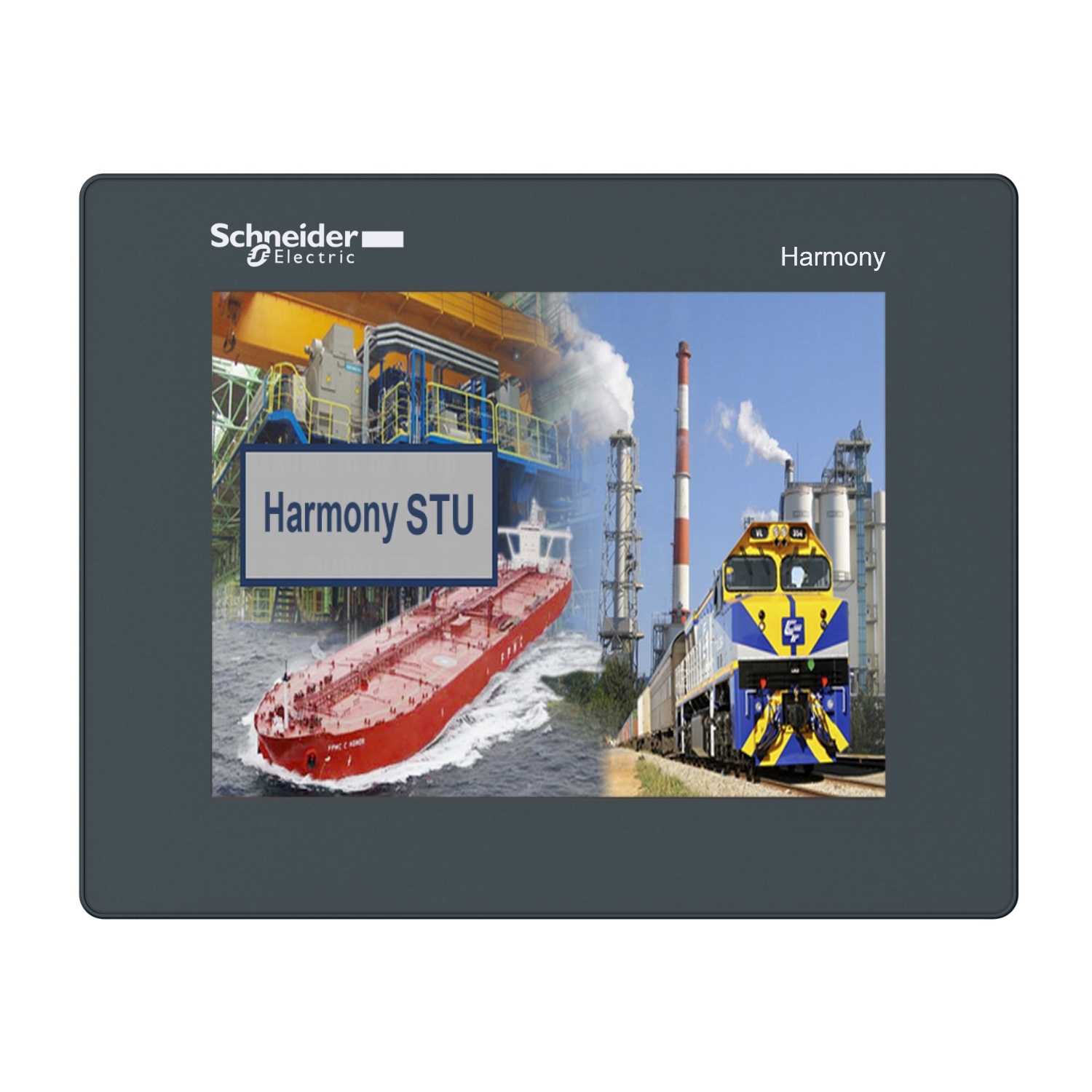

Tip
HMISTU
Tip napetosti
DC
Napetost (V)
24 V
Vrsta produkta
zaslon
Diagonala zaslona (")
5.7"
Voltage type of supply voltage
DC
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
No
Supporting protocol for TCP/IP
Yes
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Rail mounting possible
No
Supporting protocol for DeviceNet
No
Supporting protocol for MODBUS
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for LON
No
Supporting protocol for other bus systems
No
Supporting protocol for SUCONET
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
Supporting protocol for KNX
No
IO link master
No
Suitable for safety functions
No
Supply voltage DC (V)
24 Volt
Wall mounting/direct mounting
No
Degree of protection (IP), front side
IP67
Degree of protection (NEMA), front side
4X
Number of interfaces PROFINET
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
2
Number of HW-interfaces RS-422
1
Number of HW-interfaces RS-485
0
Number of HW-interfaces industrial Ethernet
0
Number of HW-interfaces RS-232
1
Number of HW-interfaces Wireless
0
With message indication
No
Number of function buttons, programmable
0
Number of grey-scales/blue-scales of display
0
With numeric keyboard
No
With alpha numeric keyboard
No
Number of buttons with LED
0
With message system (incl. buffer and confirmation)
No
Process value representation (output) possible
No
Type of display
TFT
Number of password levels
0
With printer output
No
Process default value (input) possible
No
With recipes
No
Number of online languages
0
Additional software components, loadable
No
Touch technology
Other
With SW interfaces
No
Operation temperature (°C)
0…50 °C
Screen diagonal (in)
3.4
Number of system buttons
0
Number of pixels, horizontal
200
With colour display
Yes
Number of colours of the display
3
Number of pixels, vertical
80
Useful project memory/user memory (kByte)
128
