Max. nazivni tok (A)
220
Št. polov
4 P
Tip napetosti
AC

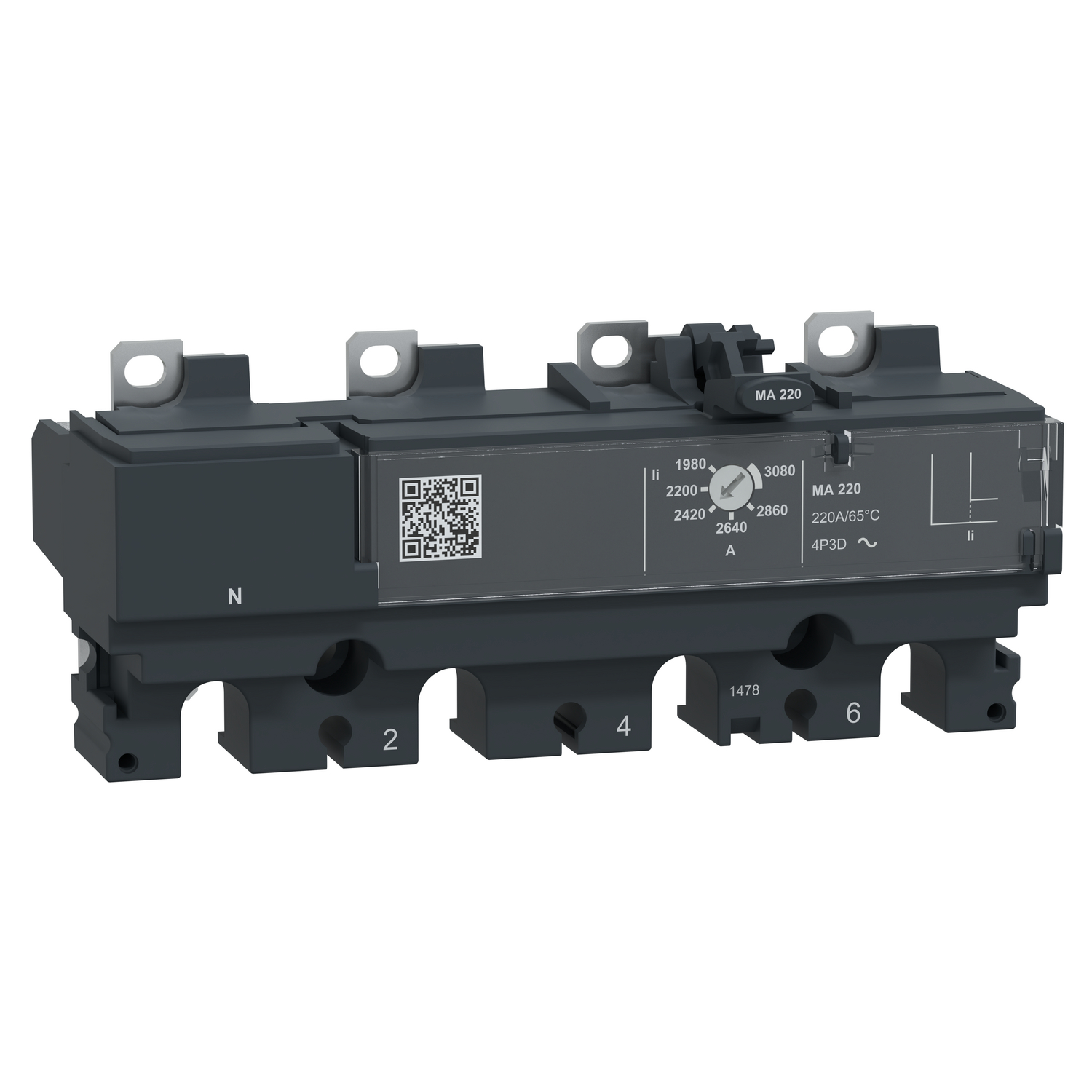

Vrsta produkta
zaščitna enota
Za odklopnik tipa
NSX250
Tip zaščite
MA
Tok zaščite (A)
220 A
Rated control supply voltage Us at AC 50HZ (V)
690 V
Rated control supply voltage Us at AC 60HZ (V)
690 V
Voltage type for actuating
AC
Rated switch current (A)
220
Number of poles
4
Height (mm)
60.6
Width (mm)
139.7
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Depth (mm)
88.2
Type of motor protection
Other
Initial value of the undelayed short-circuit release - setting range (A)
1980
End value adjustment range undelayed short-circuit release (A)
3080
With ground fault protection function
No
Short-circuit release function
Undelayed
Number of auxiliary contacts as change-over contact
0
Operating voltage at AC 50 Hz (V)
690 Volt
Operating voltage at AC 60 Hz (V)
690 Volt
Voltage type (operating voltage)
AC
External power supply required
No
Current setting undelayed short-circuit release (Ampere)
1980…3080 Ampere
