Max. nazivni tok (A)
160
Št. polov
4 P
Tip napetosti
AC

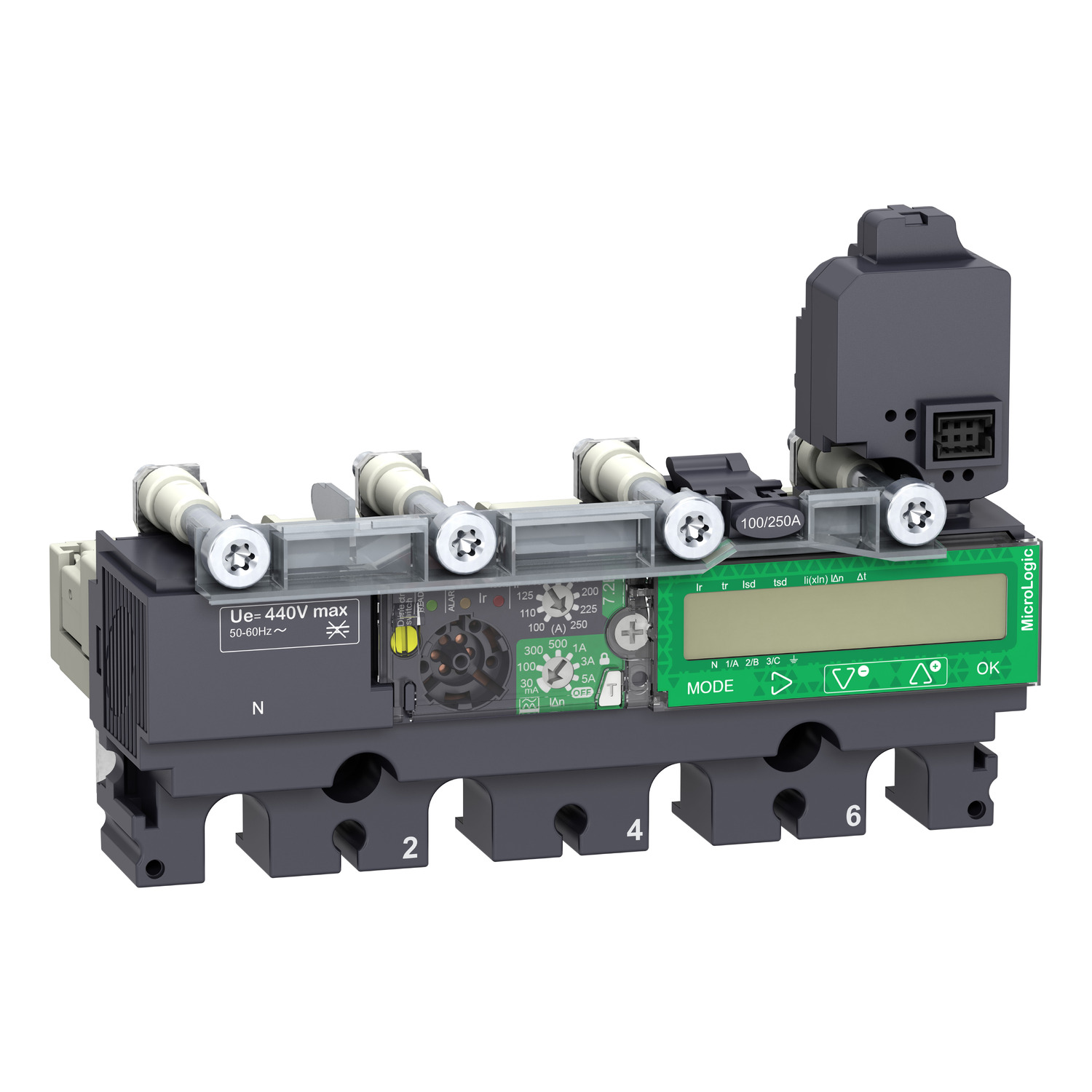

Vrsta produkta
zaščitna enota
Za odklopnik tipa
NSX160
Tip zaščite
Mocrologic 7.2 E
Tok zaščite (A)
160 A
Rated control supply voltage Us at AC 50HZ (V)
440 V
Rated control supply voltage Us at AC 60HZ (V)
440 V
Voltage type for actuating
AC
Voltage type of supply voltage
DC
Rated switch current (A)
160
Number of poles
4
Height (mm)
96.9
Width (mm)
139.7
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Depth (mm)
90.3
Type of motor protection
Electronic release
Initial value of the undelayed short-circuit release - setting range (A)
240
End value adjustment range undelayed short-circuit release (A)
2400
With ground fault protection function
No
Overload release current setting (A)
63…160 Ampere
Short-circuit release function
Delayed
Supply voltage DC (V)
24 Volt
Number of auxiliary contacts as change-over contact
0
Operating voltage at AC 50 Hz (V)
440 Volt
Operating voltage at AC 60 Hz (V)
440 Volt
Voltage type (operating voltage)
AC
External power supply required
Yes
Current setting undelayed short-circuit release (Ampere)
240…2400 Ampere
Current setting delayed short-circuit release (Ampere)
94.5…1600 Ampere
