Max. nazivni tok (A)
1.6
Št. polov
4 P
Tip napetosti
AC

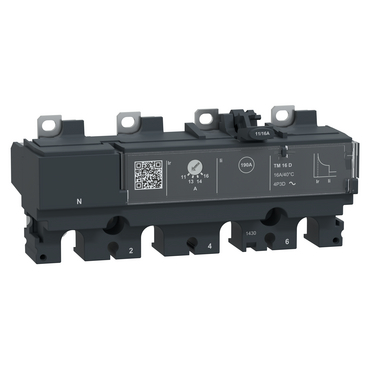

Vrsta produkta
zaščitna enota
Za odklopnik tipa
NSX100
Tip zaščite
TMD
Tok zaščite (A)
16 A
Rated control supply voltage Us at AC 50HZ (V)
690 V
Rated control supply voltage Us at AC 60HZ (V)
690 V
Voltage type for actuating
AC
Rated switch current (A)
16
Number of poles
4
Height (mm)
60.6
Width (mm)
139.7
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Depth (mm)
88.2
Type of motor protection
Thermal/magnetic release
Initial value of the undelayed short-circuit release - setting range (A)
190
End value adjustment range undelayed short-circuit release (A)
190
With ground fault protection function
No
Overload release current setting (A)
11.2…16 Ampere
Short-circuit release function
Undelayed
Number of auxiliary contacts as change-over contact
0
Operating voltage at AC 50 Hz (V)
690 Volt
Operating voltage at AC 60 Hz (V)
690 Volt
Voltage type (operating voltage)
AC
External power supply required
No
Current setting undelayed short-circuit release (Ampere)
190 Ampere
