Tok
16
Št. polov
2 P+E
Tip napetosti
AC
IP zaščita
IP65
Montaža
kvadratna
Vrsta produkta
vtičnica
Max. napetost (V)
250 V
Frequency (Hz)
50…60 Hertz
Concurrently switching N-neutral
No
Model

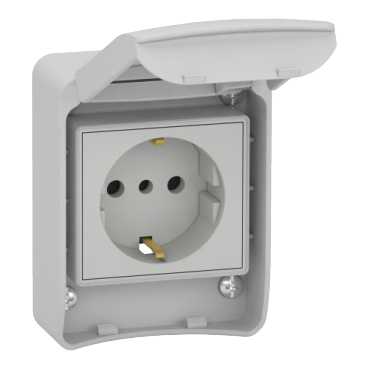

Socket outlet CEE 7/3 (type F)
Mounting method
Surface mounted
Lockable
No
Colour
Grey
With hinged lid
No
With child-protection
Yes
With signal lamp
No
Number of phases
1
Nominal voltage (V)
250
Halogen free
Yes
Transparent
No
Material
Plastic
Surface finishing
Matt
Material quality
Thermoplastic
Impact strength
IK01
Surface protection
Untreated
Insulated mounting
No
RAL-number (akin)
7035
With on/off switch
No
Type of fastening
Mounting with screw
Nominal current (A)
16
Connection type
Push-in clamp
Suitable for degree of protection (IP)
IP65
Min. depth of built-in installation box (mm)
47.2
Number of modules (module system)
0
Rated fault current (mA)
0
For heavy conditions (in accordance with VDE)
No
With built-in USB power supply
No
Eject-mechanism
No
Width of device (mm)
65
Height of device (mm)
85
Rotated central insert
No
Fault current protection
No
Over voltage protection
No
Special power supply
No special power supply
Antibacterial treatment
No
Number of socket outlets switchable
0
Depth of device (mm)
45.2
With function lighting
No
With orientation lighting
No
Protective contact
Yes
Label space/information surface
No
With loop through function
No
With miniature fuse
No
Number of units
1
Protective earth pin round
Yes
Number of active Pins (flat)
0
Number of active Pins (round)
2
Imprint/indication
EDB
Protective contact
Earthing clips
IFTTT support available
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
With Wi-Fi signal repeater
No
Metallic colour
No
With built-in bluetooth speaker
No
Compliant with UK Building Regulations Part M
No
For heavy conditions according to VDE
No
