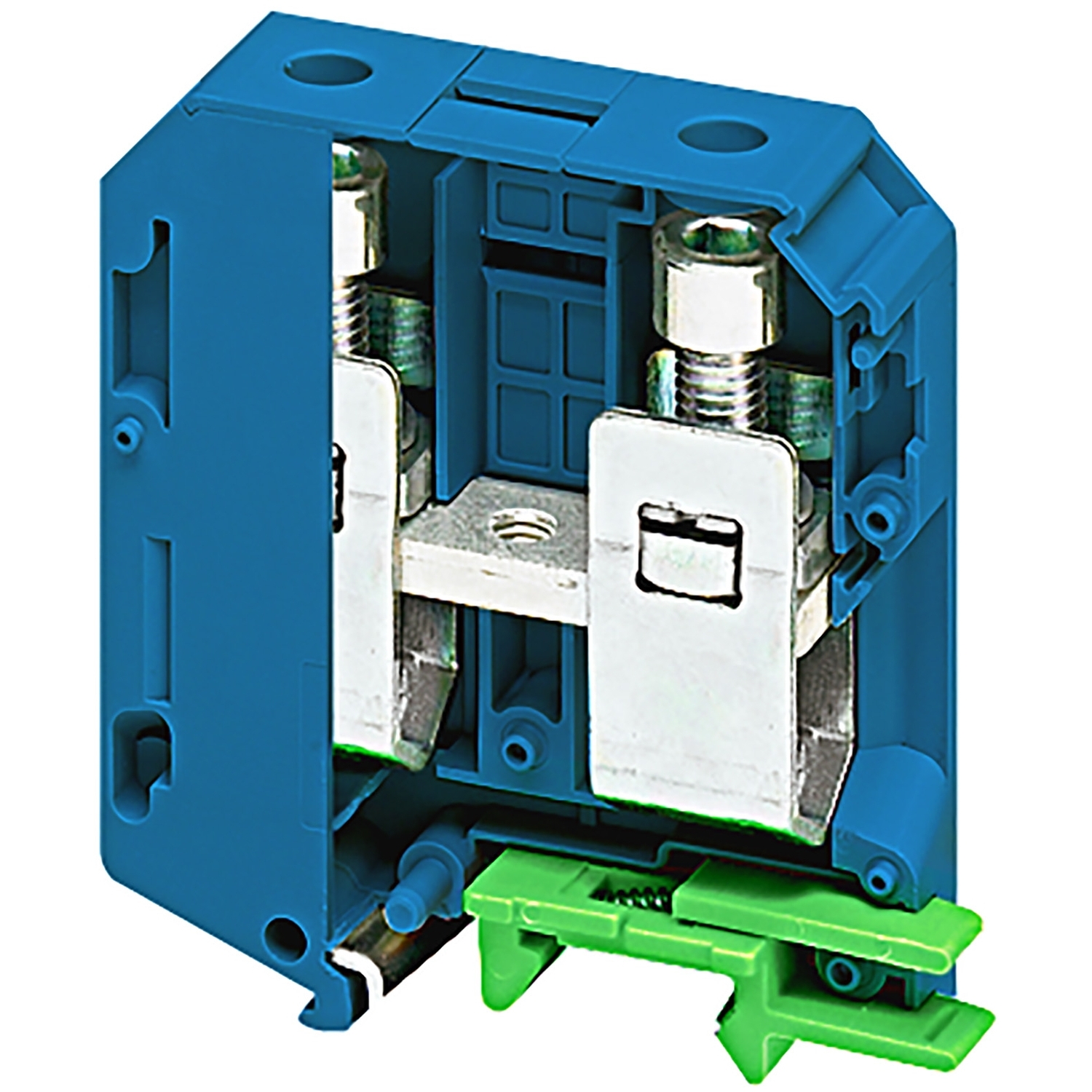

Tip
TRV
Namen
ničelna
Vrsta priklopa
vijačni
Št. polov
enojna
Barva
modra
Nominalni presek (mm²)
70 mm²
Velikost
standard
Rated voltage (V)
1000
Connectable conductor cross section solid-core (mm²)
16…95 Square millimetre
Mounting method
DIN rail (top hat rail) 35 mm
Colour
Blue
Length (mm)
70.5
Height (mm)
875
Width (mm)
20.3
Depth (mm)
70.5
Rated current In (A)
192
Width/grid dimension (mm)
20.3
Connectable conductor cross section fine-strand without cable end sleeve (mm²)
25…70 Square millimetre
Operation temperature (°C)
-40…130 Degrees celsius
Number of levels
1
Type of electrical connection 2
Screw connection
Type of electrical connection 1
Screw connection
Inflammability class of insulation material acc. with UL94
V0
Height at lowest possible mounting height (mm)
87.5
Closing plate required
Yes
Connection position
Sideways
Explosion-tested version 'Ex e'
No
Material insulation body
Thermoplastic
Number of clamp positions per level
2
Suitable for conductor material
Aluminium/copper
