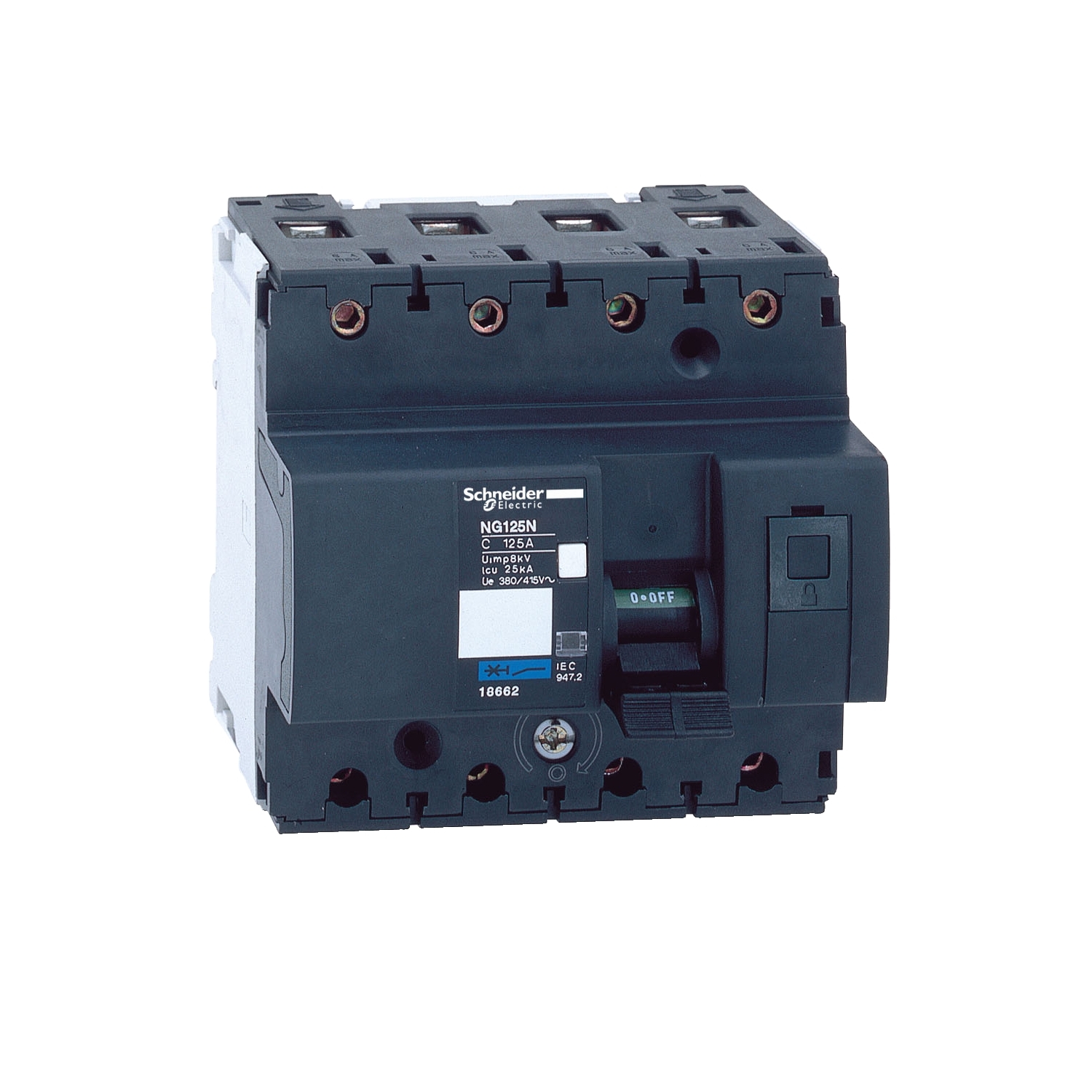

Tip
NG125
Tok
100
Kratkostična zmogljivost
25 kA
Izklopilna krivulja
Krivulja C
Napetost
AC
Št. polov
4 P
Built-in depth (mm)
47
Frequency (Hz)
50…60 Hertz
Number of poles (total)
4
Rated insulation voltage Ui (V)
690
Width in number of modular spacings
6
Number of protected poles
4
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V (kA)
50
Additional equipment possible
Yes
Rated impulse withstand voltage Uimp (kV)
8
Degree of protection (IP)
IP20
Rated current (A)
100
Rated voltage (V)
400
Release characteristic
C
Concurrently switching N-neutral
Yes
Voltage type
AC/DC
Connectable conductor cross section solid-core (mm²)
16…70 Square millimetre
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V (kA)
25
Over voltage category
4
Ambient temperature during operating (°C)
-30…70 Degrees celsius
Connectable conductor cross section multi-wired (mm²)
10…50 Square millimetre
Pollution degree
3
Suitable for flush-mounted installation
No
Flush-mounted installation
No
Explosion-proof
No
Power loss (Watt)
5.2
