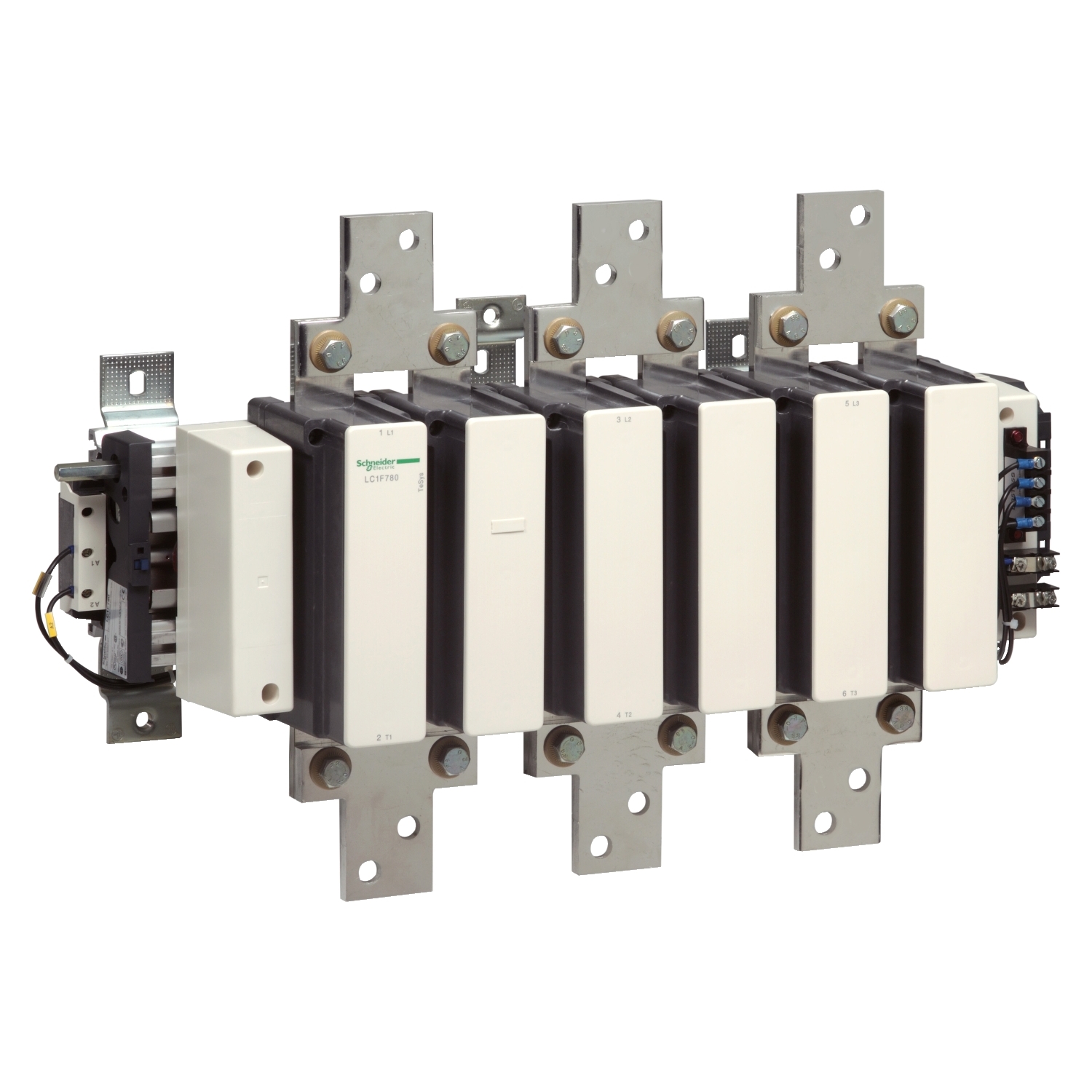

Tip
LC1F
Max. nazivni tok (A)
780
Max. nazivna moč pri 400 V AC (kW)
400
Frekvenca (Hz)
50/60 Hz
Vrsta priklopa
vijačni
Število pomožnih kontaktov kot normalno odprtih kontaktov (NO)
0
Število pomožnih kontaktov kot normalno zaprtih kontaktov (NC)
0
Št. polov
3 P
Tip bremena
AC-3
Vrsta kontaktorja
visoko zmogljivostni
Type of electrical connection of main circuit
Bolt connection
Height (mm)
434
Width (mm)
702
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Depth (mm)
255
Rated operation current Ie at AC-3, 400 V (A)
780
Number of normally closed contacts as main contact
0
Number of main contacts as normally open contact
3
Modular version
No
Rated operation current Ie at AC-1, 400 V (A)
1600
Rated operation current Ie at AC-4, 400 V (A)
225
Rated operation power at AC-4, 400 V (kW)
110
Operating voltage at AC 50 Hz (V)
1000 Volt
Operating voltage at AC 60 Hz (V)
1000 Volt
