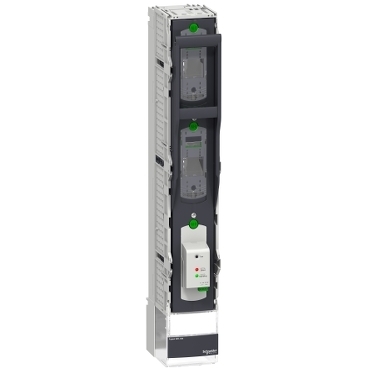

Tip
ISFT400
Tok
400
Max. nazivni tok (A)
400
Vrsta
vertikalni
Tip varovalke
NH2
Način montaže
zbiralka 185 mm
Smer priklopa
zgoraj/spodaj
Number of poles
3
Type of electrical connection of main circuit
Screw connection
Conditioned rated short-circuit current Iq (kA)
120
Type of control element
Other
Degree of protection (IP), front side
IP20
Suitable for front mounting 4-hole
Yes
Suitable for ground mounting
No
Version as emergency stop installation
No
Max. rated operation voltage Ue AC (V)
690
Version as main switch
Yes
Rated short-time withstand current lcw (kA)
1.5
Version as safety switch
Yes
Motor drive integrated
No
Motor drive optional
No
Cable entry
Other
Suitable for busbar mounting
Yes
Suitable for fuses
NH2
Equipped with connectors
Yes
With error protection
Yes
Position control element
Front side
