Tip

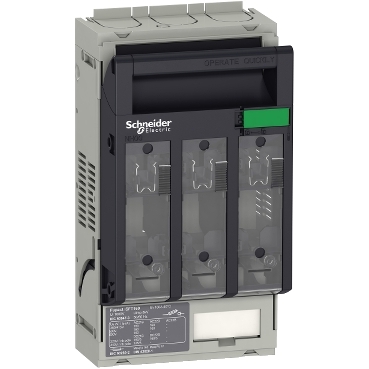

ISFT160
Tok
160
Max. nazivni tok (A)
160
Vrsta
kompaktni
Tip varovalke
NH00
Način montaže
montažna plošča
Smer priklopa
zgoraj/spodaj
Number of poles
3
Type of electrical connection of main circuit
Screw connection
Conditioned rated short-circuit current Iq (kA)
80
Type of control element
Other
Degree of protection (IP), front side
IP3X
Suitable for front mounting 4-hole
Yes
Suitable for ground mounting
No
Version as emergency stop installation
No
Max. rated operation voltage Ue AC (V)
690
Version as main switch
Yes
Rated short-time withstand current lcw (kA)
5
Version as safety switch
No
Motor drive integrated
No
Motor drive optional
No
Cable entry
Other
Suitable for busbar mounting
No
Suitable for fuses
NH00
Equipped with connectors
Yes
With error protection
Yes
Position control element
Front side
