Tip

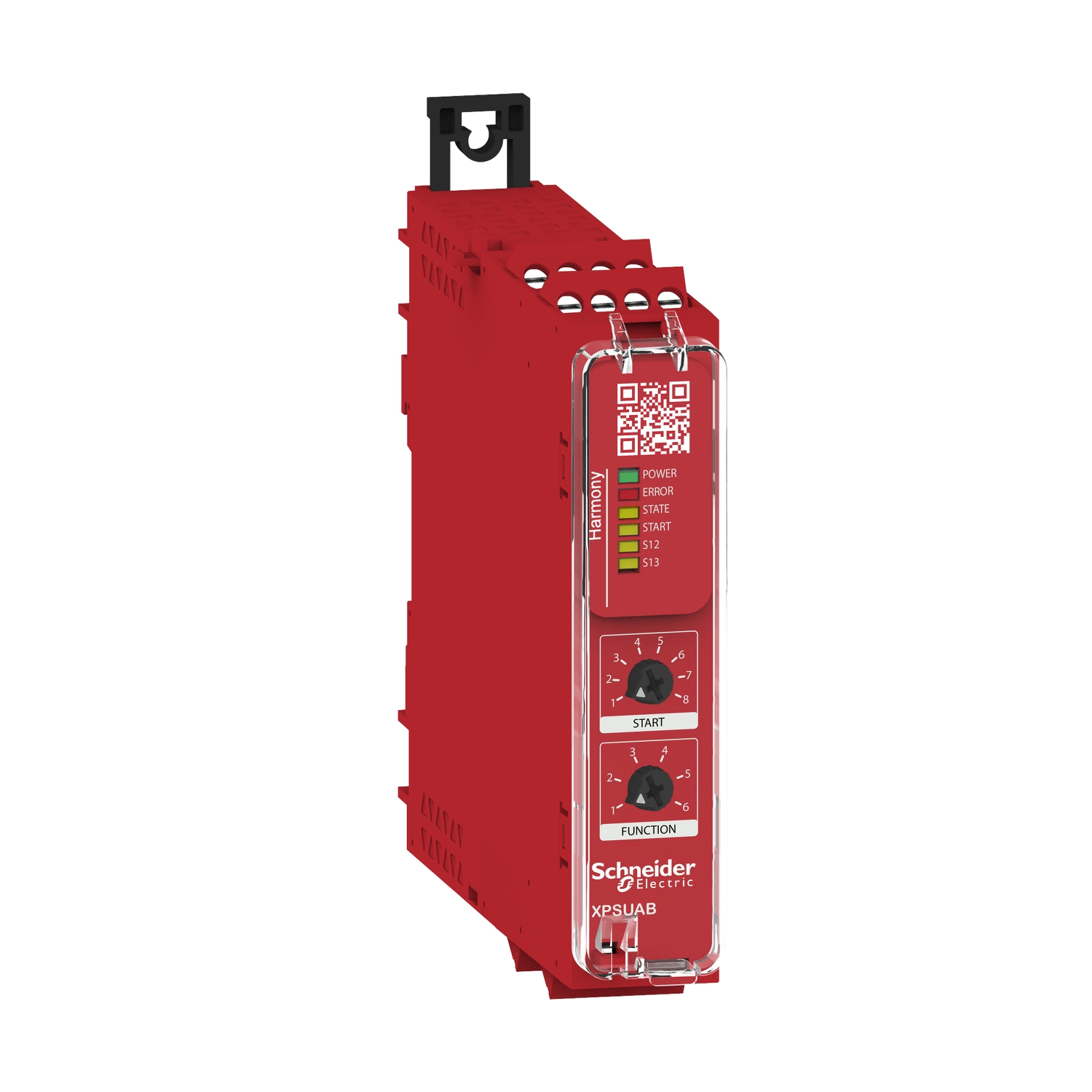

XPSU
Tip napetosti
AC/DC
Napetost (V)
24 V
Fukcija modula
izklop v sili, varnostna ograja, varnostno stikalo, varnostna zavesa, dvoročni vklop
Snemljive priključne sponke
da
Časovni zamik
ne
Vhodi
1
Izhodi
1 NC
Type of electric connection
Screw connection
Model
Basic device
Rated control supply voltage Us at AC 50HZ (V)
24 V
Rated control supply voltage Us at AC 60HZ (V)
24 V
Voltage type for actuating
AC/DC
Rated control supply voltage Us at DC (V)
24 V
Voltage type of supply voltage
DC
Control voltage 1 (V)
24 Volt
Type of control voltage 1
DC
Type of control voltage 2
DC
Control voltage 2 (V)
24 Volt
Rated switch current (A)
1.1
Height (mm)
100
Width (mm)
22.5
Depth (mm)
120
Rail mounting possible
Yes
SIL according to IEC 61508
1
Performance level acc. EN ISO 13849-1
Level c
Supply voltage DC (V)
24 Volt
With detachable clamps
Yes
Category according to EN 954-1
1
Power consumption (W)
11
Number of outputs, safety related, delayed, with contact
0
Number of outputs, safety related, undelayed, semiconductors
0
With feedback circuit
No
Number of outputs, safety related, undelayed, with contact
1
With approval according to UL
Yes
Number of outputs, signalling function, delayed, with contact
0
Number of outputs, safety related, delayed, semiconductors
0
Number of outputs, signalling function, undelayed, with contact
0
Evaluation inputs
1-channel
Stop category acc. IEC 60204
0
With approval for TÜV
Yes
With approval for BG BIA
No
Number of outputs, signalling function, undelayed, semiconductors
0
Number of outputs, signalling function, delayed, semiconductors
0
Suitable for monitoring of position switches
Yes
Suitable for monitoring of tactile sensors
No
Suitable for monitoring of valves
No
Type of safety acc. IEC 61496-1
1
Suitable for monitoring of magnetic switches
Yes
Suitable for monitoring of proximity switches
Yes
Suitable for monitoring of emergency-stop circuits
Yes
Suitable for monitoring of optoelectronic protection equipment
Yes
With muting function
No
With start input
Yes
Operating voltage at DC (V)
24 Volt
Release-delay (s)
0 Second
Voltage type (operating voltage)
DC
With approval for TÜV
Yes
