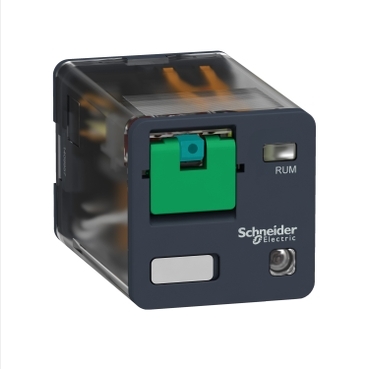

Tip
RUM
Tip napetosti
DC
Krmilna napetost (V)
125 V
Širina (mm)
35
Nazivni tok (A)
10
Št. kontaktov
3
Indikacija LED
da
Vrsta releja
univerzalni vtični rele
Dodatek - podnožje
RUZC3M
Dodatek - oznaka
RXZL520
Dodatek - vzmet
RUZC200
Dodatek - dioda
RUW240BD
Degree of protection (IP)
IP40
Number of contacts as normally open contact
0
Number of contacts as change-over contact
3
Number of contacts as normally closed contact
0
Type of electric connection
Plug-in connection
Voltage type for actuating
DC
Rated control supply voltage Us at DC (V)
125 Volt
Height (mm)
35.4
Width (mm)
35
Depth (mm)
56
With LED indication
Yes
Drive, switching attitude
Mono stable
With forced-guided contacts
Yes
Nominal current (A)
10
Drive, polarization
Polarized
Type of switch contact
Single contact
Complete with socket
No
With detachable clamps
No
Material of contact surface
Other
Material of contact insert
Other
Material contact
Other
Relay technology category according to IEC 61810-7
RT I
