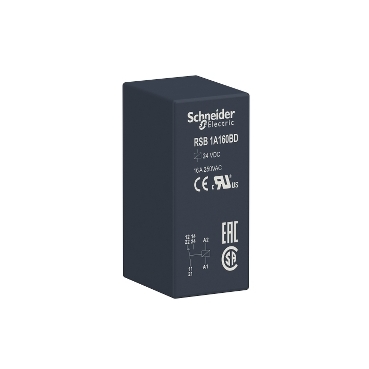

Tip
RSB
Tip napetosti
DC
Krmilna napetost (V)
24 V
Širina (mm)
12.5
Nazivni tok (A)
16
Št. kontaktov
1
Indikacija LED
ne
Vrsta releja
univerzalni vtični rele
Dodatek - podnožje
RSZE1S48M
Dodatek - oznaka
RSZL300
Dodatek - vzmet
RSZR215
Dodatek - dioda
RZM021BN
Degree of protection (IP)
IP40
Number of contacts as normally open contact
0
Number of contacts as change-over contact
1
Number of contacts as normally closed contact
0
Type of electric connection
Plug-in connection
Voltage type for actuating
DC
Rated control supply voltage Us at DC (V)
24 Volt
Height (mm)
29
Width (mm)
12.5
Depth (mm)
19.6
With LED indication
No
Drive, switching attitude
Mono stable
With forced-guided contacts
No
Nominal current (A)
16
Drive, polarization
Polarity free
Type of switch contact
Single contact
Complete with socket
No
With detachable clamps
Yes
Material of contact surface
Other
Material of contact insert
Other
Material contact
Other
Relay technology category according to IEC 61810-7
RT I
