Max. nazivni tok (A)
100
Serija izdelka
TransferPacT
Izdelek ali sestavni del

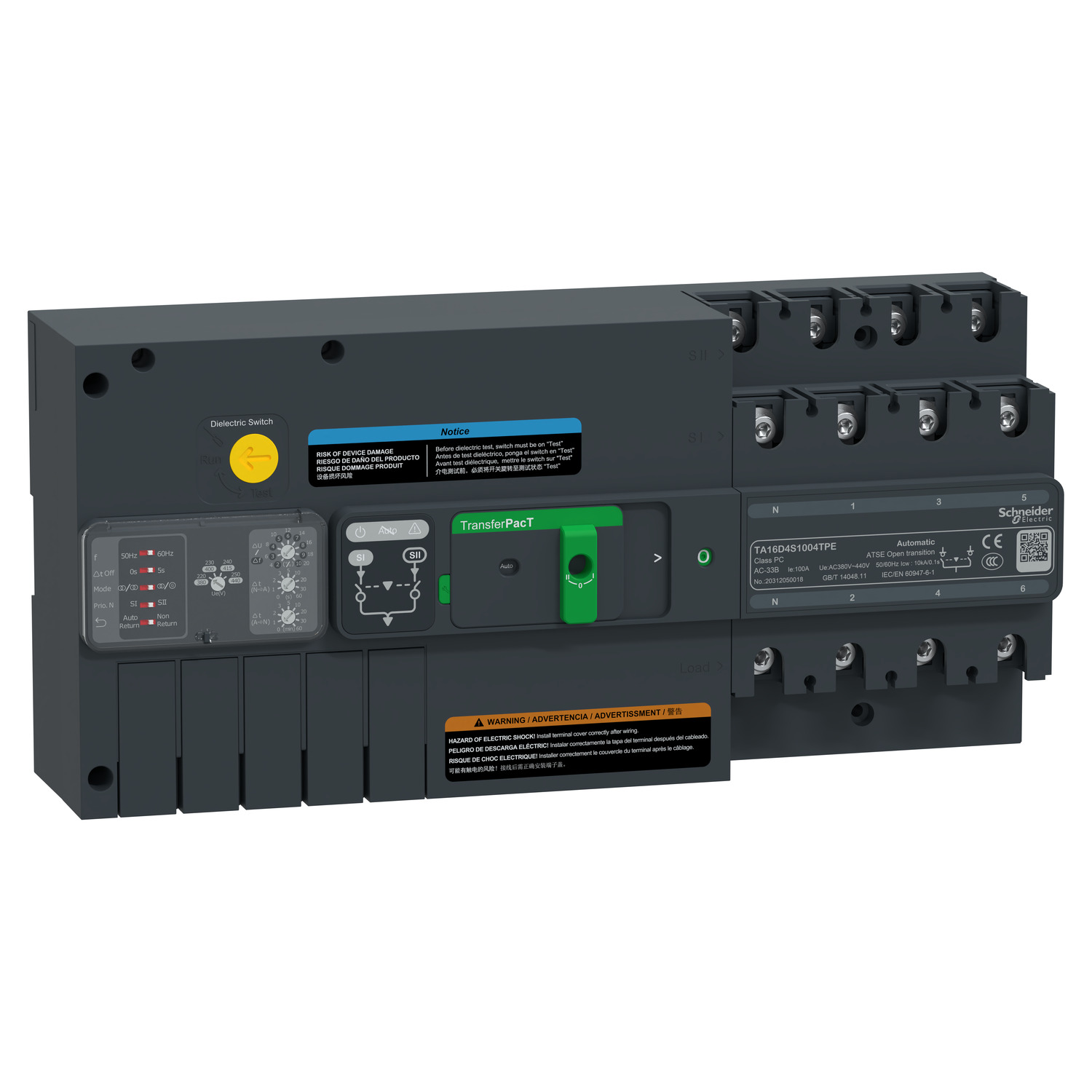

automatic transfer switch
Omrežna frekvenca
50/60 Hz
Indikacija položaja kontakta
Da
Tip omrežja
AC
[Icm] Nazivni kratkostični priklopni tok
154 kA Z zaščitnim odklopnikom v smeri proti toku 400 V AC pri50 Hz, 20 kA Samo odklopnik s stikalom 400 V AC pri50 Hz
Opis polov
4P
Povezava navzdol
screwed
Povezava navzgor
screwed
Montažni način
Pritrjen
Primerno za izolativnost
Da
Aplikacija naprave
Spremenjen vir napajanja
Model
Other
Number of poles
4
Type of electrical connection of main circuit
Screw connection
Number of auxiliary contacts as change-over contact
3
Material housing
Plastic
Type of control element
Other
With 0 (off) position
Yes
With retraction in 0-position
No
Degree of protection (IP), front side
IP20
Complete device in housing
Yes
Suitable for front mounting 4-hole
No
Suitable for distribution board installation
Yes
Suitable for ground mounting
No
