Vrsta produkta

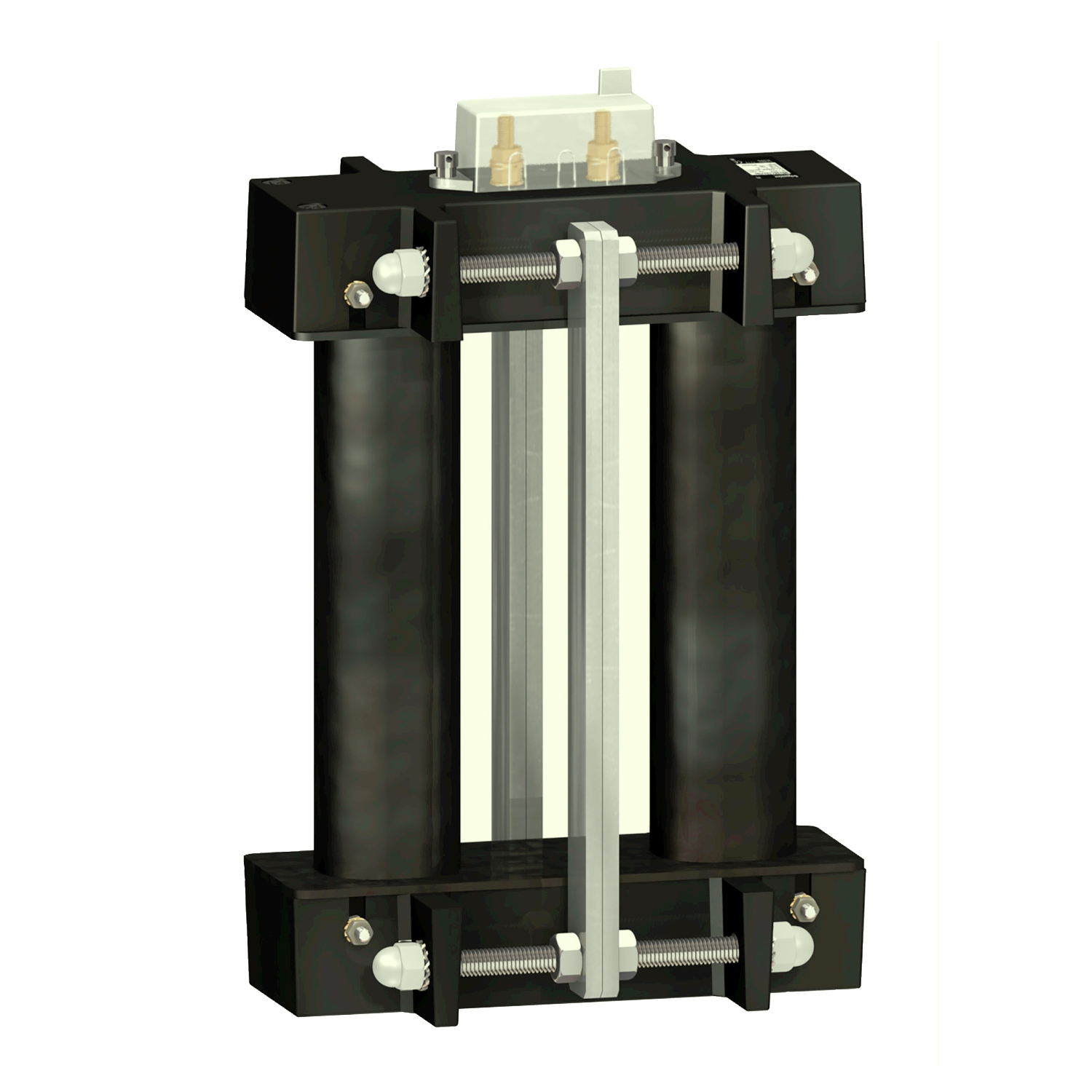

tokovni transformator
Primarni tok (A)
5000 A
Sekundarni tok (A)
5 A
Odprtina za vodnik (mm)
55x165 mm
Model
Through-feed current converter
Width opening (mm)
55
Height opening (mm)
165
Calibrated
No
Number of primary inputs
1
Secondary connection
Screw connection
Accuracy class
0.5
Primary rated current (A)
5000
Opening diameter (mm)
0
Over current limiting factor
FS 10
Secondary rated current (A)
5
With shock protection
No
Snap mounting
No
With copper rail
No
Secondary rated apparent power (VA)
60
Calibrated
No
Accuracy class
0.5
Secondary connection
Screw connection
Width opening (Millimetre)
55 Millimetre
Height opening (Millimetre)
165 Millimetre
