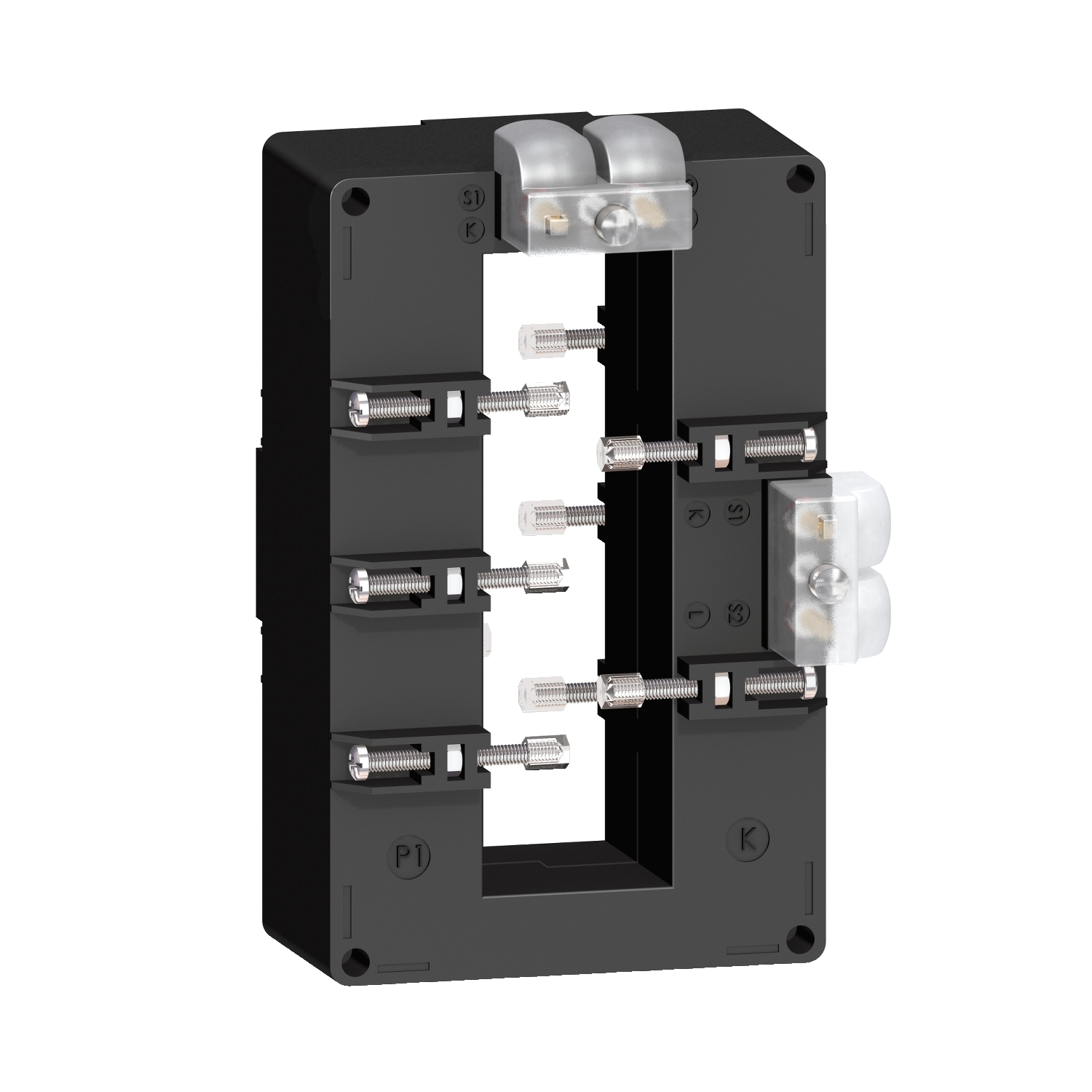

Vrsta produkta
tokovni transformator
Primarni tok (A)
2500 A
Sekundarni tok (A)
5 A
Odprtina za vodnik (mm)
38x127 mm
Model
Through-feed current converter
Width opening (mm)
38
Height opening (mm)
127
Calibrated
No
Number of primary inputs
1
Secondary connection
Screw connection
Accuracy class
1
Primary rated current (A)
2500
Opening diameter (mm)
0
Over current limiting factor
FS 5
Secondary rated current (A)
5
With shock protection
No
Snap mounting
No
With copper rail
No
Secondary rated apparent power (VA)
2.5
Calibrated
No
Accuracy class
1
Secondary connection
Screw connection
Width opening (Millimetre)
38 Millimetre
Height opening (Millimetre)
127 Millimetre
