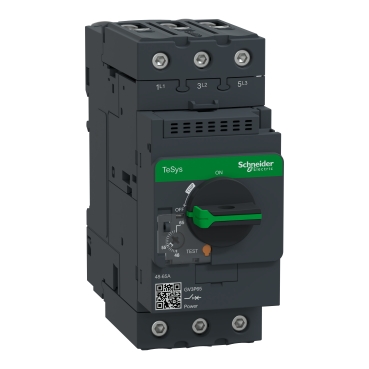

Tip
GV3
Namen
motor
Max. nazivni tok (A)
65
Max. nazivna moč pri 400 V AC (kW)
30
Frekvenca (Hz)
50/60 Hz
Vrsta priklopa
EverLink
Možnost indikacije kratkega stika
da
Vrsta MZS
termo magnetno motorsko zaščitno stikalo
Kratkostični tok (kA)
50, 50
Degree of protection (IP)
IP20
Number of poles
3
Type of electrical connection of main circuit
Screw connection
Height (mm)
132
Width (mm)
55
Depth (mm)
136
Overload release current setting (A)
48…65 Ampere
Type of control element
Turn button
With integrated auxiliary switch
No
Switch off technique
Thermomagnetic
Rated operating voltage (V)
690 Volt
Rated operation power at AC-3, 230 V (kW)
18.5
Phase failure sensitive
Yes
With integrated under voltage release
No
Adjustment range undelayed short-circuit release (A)
910 Ampere
With thermal protection
Yes
Device construction
Complete device in housing
Power loss (Watt)
8
