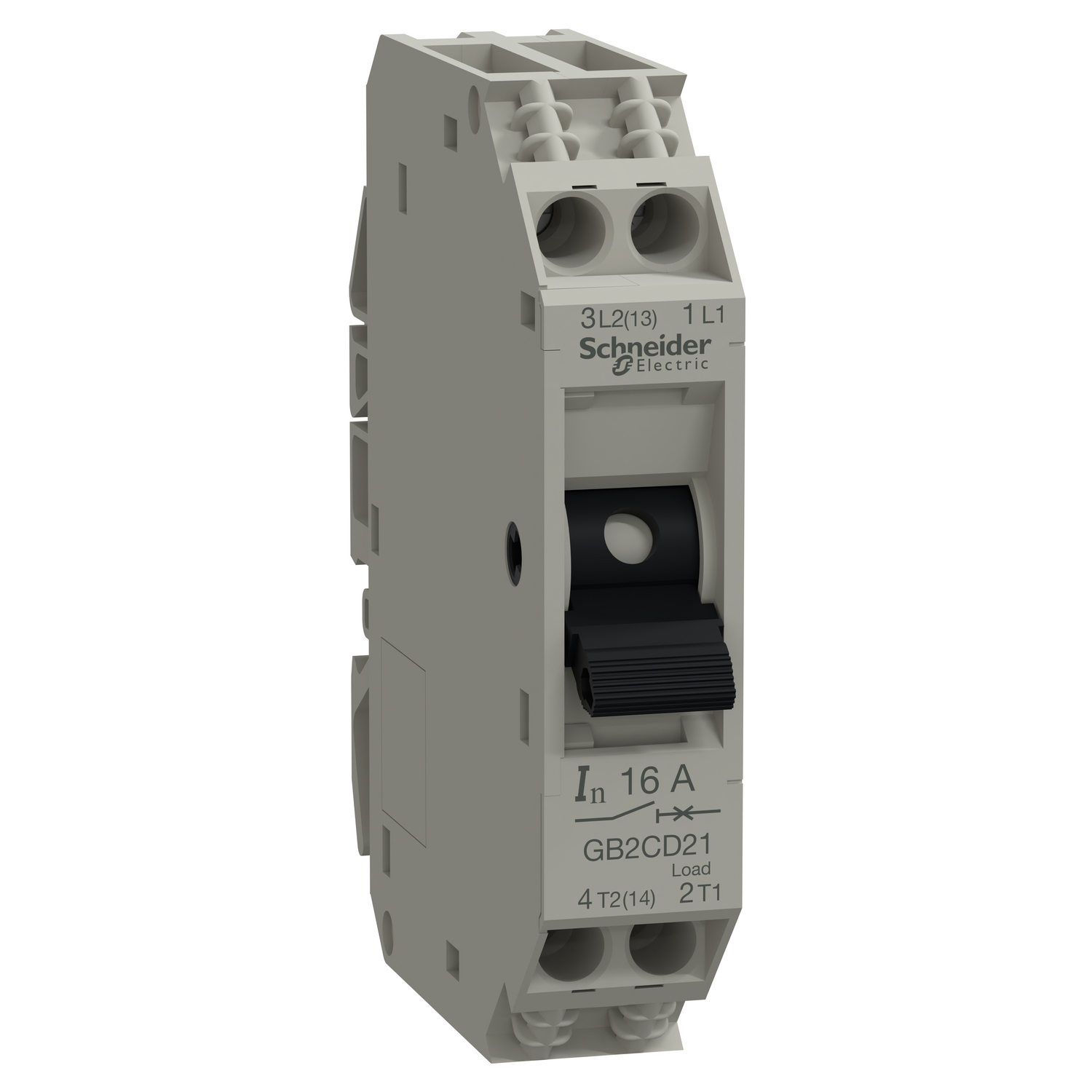

Tip
GB2
Max. nazivni tok (A)
1.6
Vrsta priklopa
vijačni
Možnost indikacije kratkega stika
ne
Vrsta
termo magnetni odklopnik
Št. polov
1 P+N
Built-in depth (mm)
74
Frequency (Hz)
50…60 Hertz
Number of poles (total)
2
Rated insulation voltage Ui (V)
250
Width in number of modular spacings
1
Number of protected poles
1
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V (kA)
15
Additional equipment possible
No
Rated impulse withstand voltage Uimp (kV)
4
Degree of protection (IP)
IP20
Rated current (A)
16
Rated voltage (V)
250
Release characteristic
Other
Concurrently switching N-neutral
Yes
Voltage type
AC
Connectable conductor cross section solid-core (mm²)
0.75…6 Square millimetre
Over voltage category
3
Ambient temperature during operating (°C)
-20…60 Degrees celsius
Connectable conductor cross section multi-wired (mm²)
0.75…4 Square millimetre
Pollution degree
2
Suitable for flush-mounted installation
No
Current limiting class
3
Flush-mounted installation
No
Explosion-proof
No
