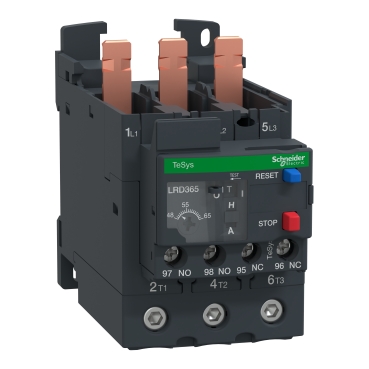

Tip
LRD
Max. nazivni tok (A)
65
Vrsta priklopa
vijačni
Komplementaren s serijo kontaktojev
LC1D, LC2D
Razred
10
Število pomožnih kontaktov kot normalno odprtih kontaktov (NO)
1 NO
Število pomožnih kontaktov kot normalno zaprtih kontaktov (NC)
1 NC
Št. polov
3 P
Mounting method
Direct attachment/single positioning
Max. rated operation voltage Ue (V)
690
Type of electrical connection of main circuit
Screw connection
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Release class
CLASS 10 A
Number of auxiliary contacts as change-over contact
0
Reset function automatic
Yes
Reset function input
No
Adjustable current range (A)
48…65 Ampere
Reset function push-button
Yes
