Max. nazivni tok (A)
175
Max. nazivna moč pri 400 V AC (kW)
37
Število pomožnih kontaktov kot normalno odprtih kontaktov (NO)
3 NO
Število pomožnih kontaktov kot normalno zaprtih kontaktov (NC)
0 NC

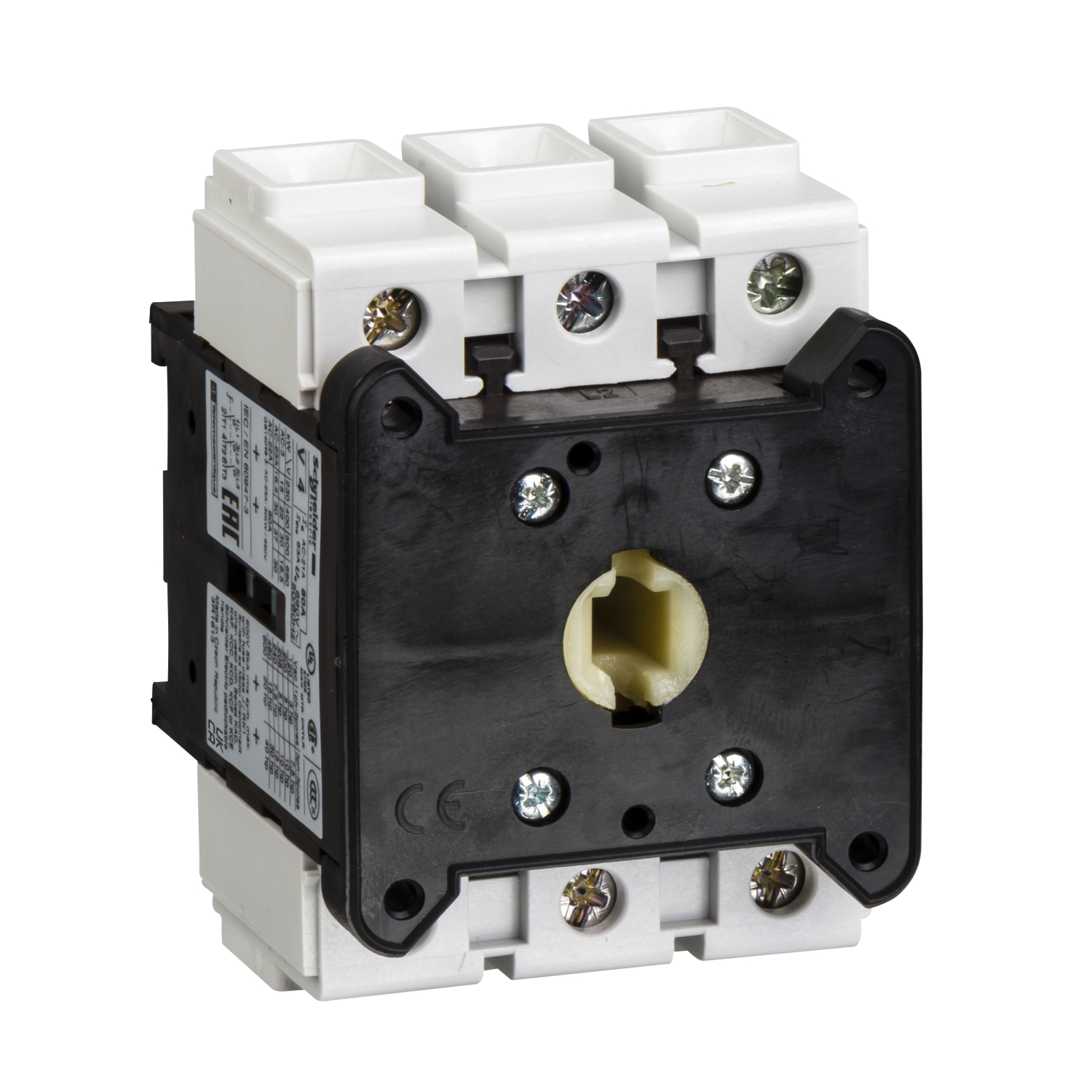

Sestavni del
ločilno stikalo
Nazivni tok (A)
175
Nazivna napetost (V AC)
690 V AC
Rdeča vrtljiva ročica
KCF3PZ
Prekritje
VZ10
Os
VZ31
Vmesnik za vrata
KZ74, KZ81
Number of poles
3
Type of electrical connection of main circuit
Screw connection
Height (mm)
125
Width (mm)
90
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Depth (mm)
90
Conditioned rated short-circuit current Iq (kA)
10
Number of auxiliary contacts as change-over contact
0
Rated operating voltage (V)
690 Volt
Device construction
Built-in device fixed built-in technique
Degree of protection (IP), front side
IP20
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Suitable for ground mounting
No
Version as emergency stop installation
No
Version as reversing switch
No
Suitable for front mounting centre
Yes
Max. rated operation voltage Ue AC (V)
690
Version as main switch
No
Rated short-time withstand current lcw (kA)
2.1
Voltage release optional
No
Interlockable
No
Version as maintenance-/service switch
No
Version as safety switch
No
Rated operation power at AC-23, 400 V (kW)
45
Suitable for front mounting 4-hole
Yes
Motor drive integrated
No
Number of switches
1
Motor drive optional
No
Rated permanent current at AC-23, 400 V (A)
83
Rated permanent current at AC-21, 400 V (A)
160
With pre-assembled cabling
No
