Tip

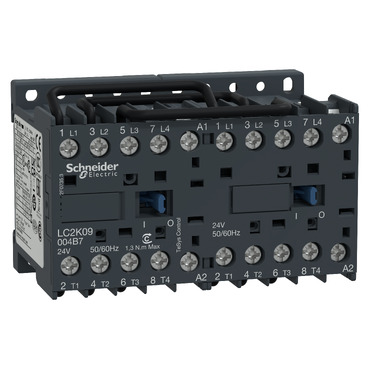

LC2K
Max. nazivni tok (A)
20
Max. nazivna moč pri 400 V AC (kW)
9
Frekvenca (Hz)
50/60 Hz
Vrsta priklopa
vijačni
Število pomožnih kontaktov kot normalno odprtih kontaktov (NO)
1
Število pomožnih kontaktov kot normalno zaprtih kontaktov (NC)
1
Št. polov
4 P
Tip napetosti
AC
Krmilna napetost (V)
230 V
Tip bremena
AC-1
Vrsta kontaktorja
smer menjalni
Degree of protection (IP)
IP20
Rated control supply voltage Us at AC 50HZ (V)
220…230 Volt
Rated control supply voltage Us at AC 60HZ (V)
220…230 Volt
Voltage type for actuating
AC
Function
Changeover contactor
Type of electrical connection of main circuit
Screw connection
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Height (mm)
58
Width (mm)
90
Depth (mm)
57
Rail mounting possible
No
Rated operation current Ie at AC-3, 400 V (A)
9
Degree of protection (NEMA)
Other
Number of normally closed contacts as main contact
0
Number of main contacts as normally open contact
4
Rated operation current Ie at AC-1, 400 V (A)
20
Operating voltage at AC 50 Hz (V)
440 Volt
Operating voltage at AC 60 Hz (V)
440 Volt
Voltage type (operating voltage)
AC
