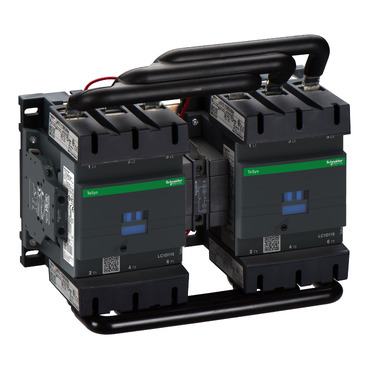

Tip
LC2D
Max. nazivni tok (A)
115
Max. nazivna moč pri 400 V AC (kW)
5.5
Frekvenca (Hz)
50/60 Hz
Vrsta priklopa
vijačni
Število pomožnih kontaktov kot normalno odprtih kontaktov (NO)
1
Število pomožnih kontaktov kot normalno zaprtih kontaktov (NC)
1
Št. polov
3 P
Tip napetosti
DC
Krmilna napetost (V)
24 V
Tip bremena
AC-3
Vrsta kontaktorja
smer menjalni
Degree of protection (IP)
IP20
Voltage type for actuating
DC
Rated control supply voltage Us at DC (V)
24 Volt
Function
Reversing contactor
Type of electrical connection of main circuit
Screw connection
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Height (mm)
158
Width (mm)
266
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Depth (mm)
148
Rail mounting possible
No
Rated operation power NEMA (kW)
5.59
Rated operation current Ie at AC-3, 400 V (A)
115
Degree of protection (NEMA)
Other
Number of normally closed contacts as main contact
0
Number of main contacts as normally open contact
3
Operating voltage at DC (V)
440 Volt
Voltage type (operating voltage)
DC
