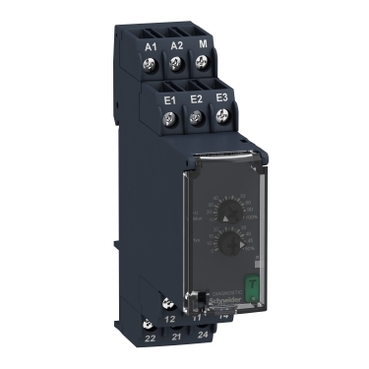

Tip
RM22
Širina (mm)
22.5
Nazivni tok (A)
8
Št. kontaktov
2 C/O
Izhod
relejski
Funkcija
prenapetost
Kontrola
eno fazna kontrola napetosti
Merilno območje napetosti (V)
50 mV - 5 V
Tip merilne napetosti
AC/DC
Max. preklopna napetost
250 V
Tip preklopne napetosti
AC
Number of contacts as normally open contact
0
Number of contacts as change-over contact
2
Number of contacts as normally closed contact
2
Type of electric connection
Screw connection
Rated control supply voltage Us at AC 50HZ (V)
24…240 V
Rated control supply voltage Us at AC 60HZ (V)
24…240 V
Voltage type for actuating
AC/DC
Rated control supply voltage Us at DC (V)
24…240 V
Height (mm)
90
Width (mm)
22.5
Depth (mm)
73
With detachable clamps
No
Single-phase hysteresis possible
Yes
Three-phase hysteresis possible
No
Single-phase over voltage possible
Yes
Three-phase over voltage possible
No
Single-phase under voltage possible
Yes
Three-phase under voltage possible
No
Contains function DC-under voltage
Yes
Contains function DC-over voltage
Yes
Contains function DC-voltage hysteresis
Yes
Type of voltage measurement range
AC/DC
Voltage measurement range 1 (V)
15…500 Volt
Response value voltage (V)
20.4…264 Volt
