Tip
PLM
Namen

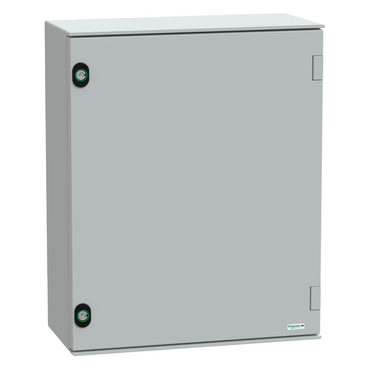

univerzalna omara
Višina omare (mm)
530
Širina omare (mm)
430
Globina omare (mm)
200
Material
poliester
Tip vrat
navadna
Število vrat
1
Tip namestitve
zidna omara
IP zaščita
IP66
RAL
RAL 7035
Montažna plošča
da
Degree of protection (IP)
IP66
Colour
Grey
Height (mm)
530
Width (mm)
430
Depth (mm)
200
Degree of protection (NEMA)
4X
Material
Plastic
With mounting plate
Yes
With glazed door
No
Wall fastening possible
Yes
RAL-number
7035
Tackable
No
Pitched roof
No
Surface finishing
Untreated
Number of doors
1
Suitable for outdoor set-up
Yes
Number of locks
2
Material quality
Polyester (PET)
Wall build in
Yes
Mounting plate depth-adjustable
Yes
Impact strength
IK10
With ventilation door
No
EMC-version
No
Pole fastening
Yes
With backside door
No
Floor installation possible
No
Number of connector holes
0
Pre-stamping
No
Transparent cover
No
With cover
No
Couplable
No
Freestanding
No
Intermediate mounting
No
Corner model
No
Suitable for wall mounting
Yes
Max. permissible load of the mounting plate according to IEC 62208 (Newton)
232
With door
Yes
Max. permissible load of the enclosure according to IEC 62208 (Newton)
378
Max. permissible load of the door(s) according to IEC 62208 (Newton)
77
