Tip

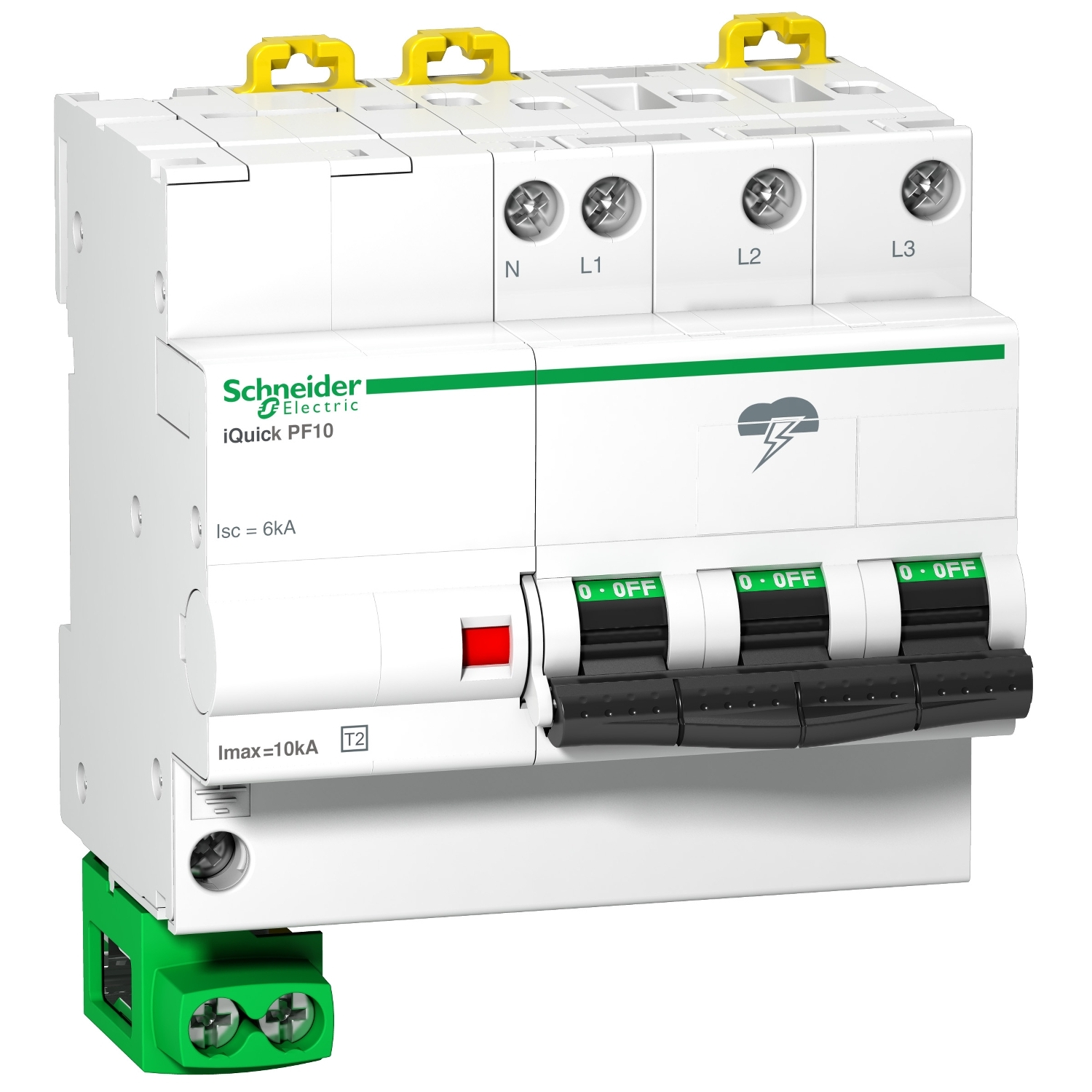

iQuick PF
Št. polov
3 P+N
Tip napetosti
AC
Napetost (V)
275 V
Vrsta produkta
prenapetostna zaščita
Nazivni izpraznitveni tok (kA)
6 kA
Pomožni kontakt
ne
Degree of protection (IP)
IP20
Mounting method
DIN rail (top hat rail) 35 mm
System configuration TN-C
No
System configuration DC
No
Nominal discharge surge current (8/20) (kA)
20
System configuration TN
No
System configuration IT
No
Voltage protection level (kV)
1.5
System configuration TT
Yes
System configuration TN-S
Yes
Signalling at the device
Optical
Nominal voltage AC (V)
400
Max. discharge surge current (8/20) (kA)
20
System configuration TN-C-S
No
With remote signalling contact
No
System configuration other
No
Construction size
5 modular spacing
Integrated backup fuse
No
Category type 2
Yes
Max. continuous voltage AC (V)
275
Number of conductors (without earthing)
3
Max. conductor cross section solid (solid, stranded) (mm²)
25
Max. conductor cross section flexible (fine-strand) (mm²)
16
Short-circuit breaking capacity (Isccr) (kA)
6
Voltage protection level N-PE (kV)
1.5
Voltage protection level L-N (kV)
1.5
Integrated short-circuit protection
Yes
Leakage-current free
No
